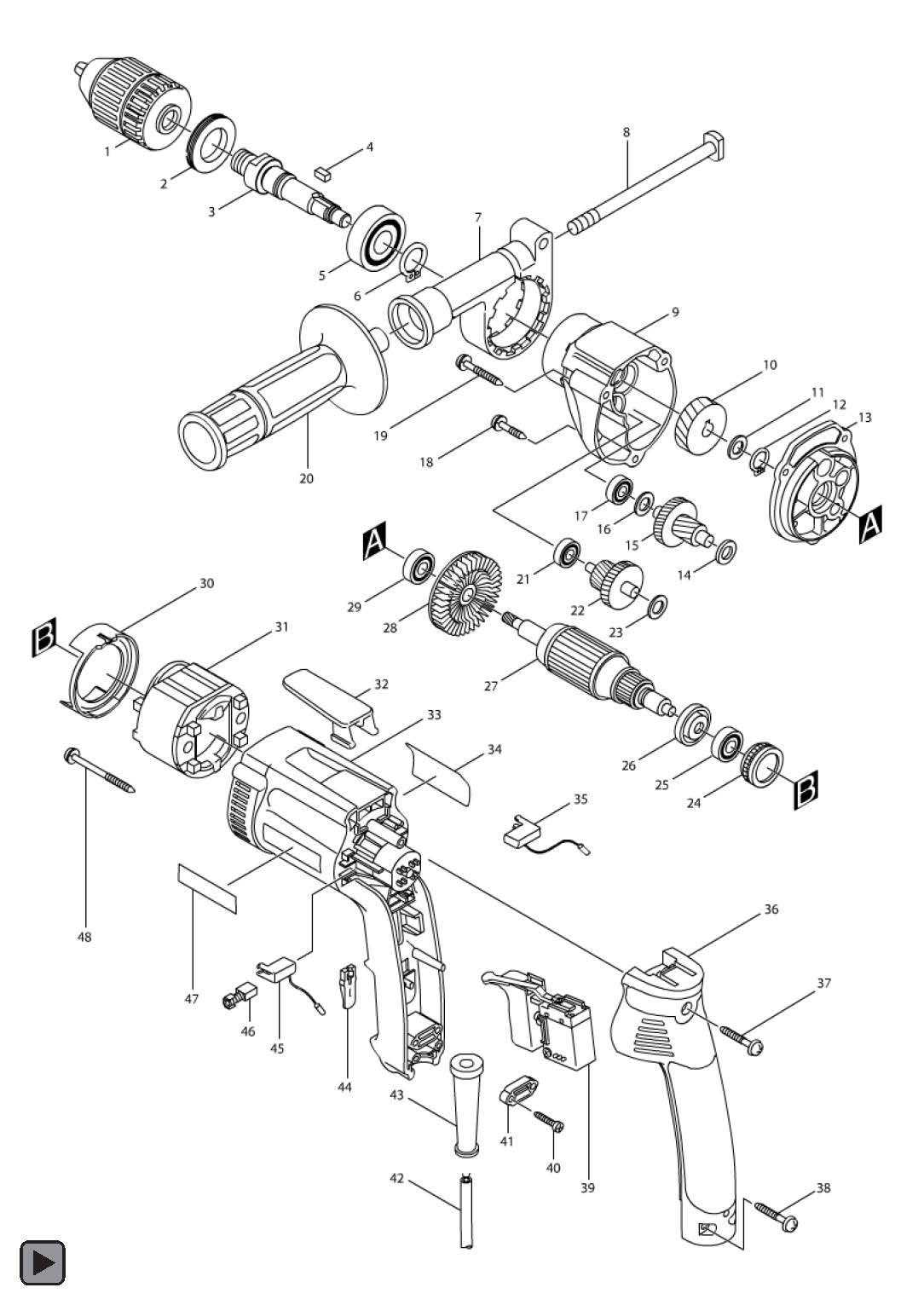

| Broj dela | Šifra dela | Naziv dela |
|---|---|---|
| 1 | 192956-2 | KEYLESS DRILL CHUCK |
| 2 | 285807-7 | BEARING RETAINER 22-36 |
| 3 | 324039-2 | SPINDLE |
| 4 | 254202-2 | KEY 4 |
| 5 | 211206-7 | BALL BEARING 6202LLB |
| 6 | 961055-9 | RETAINING RING S-15 |
| 7 | 317401-8 | GRIP BASE |
| 8 | 266261-4 | BOLT M8X130 |
| 9 | 317397-3 | GEAR HOUSING |
| 10 | 226529-0 | HELICAL GEAR 26 |
| 11 | 267143-3 | FLAT WASHER 11 |
| 12 | 961051-7 | RETAINING RING S-11 |
| 13 | 152639-6 | GEAR HOUSING COVER COMPLETE |
| 13 | 212004-2 | NEEDLE BEARING 810 |
| 13 | 212016-5 | NEEDLE BEARING 609 |
| 14 | 253804-1 | FLAT WASHER 6 |
| 15 | 226136-9 | GEAR COMPLETE 7-32 |
| 16 | 253133-2 | FLAT WASHER 7 |
| 17 | 211021-9 | BALL BEARING 607LLB |
| 18 | 266050-7 | TAPPING SCREW 4X30 |
| 19 | 266069-6 | TAPPING SCREW 4X45 |
| 20 | 152521-9 | GRIP 36 COMPLETE |
| 21 | 211012-0 | BALL BEARING 606ZZ |
| 22 | 226137-7 | GEAR COMPLETE 20-34 |
| 23 | 253804-1 | FLAT WASHER 6 |
| 24 | 421479-6 | RUBBER RING 19 |
| 25 | 211021-9 | BALL BEARING 607LLB |
| 26 | 681636-0 | INSULATION WASHER |
| 27 | 517358-5 | ARMATURE ASS'Y 220-240V |
| INC. 25,26,28,29 | ||
| 28 | 241873-4 | FAN 55 |
| 29 | 211031-6 | BALL BEARING 608LLB |
| 30 | 417356-8 | BAFFLE PLATE |
| 31 | 633468-1 | FIELD 220-240V |
| 32 | 417625-7 | HOOK |
| 33 | 183270-7 | MOTOR HOUSING SET |
| INC. 47 | ||
| 34 | 852496-9 | NAME PLATE DP4001 |
| 35 | 643951-0 | BRUSH HOLDER |
| 36 | 152641-9 | HANDLE COVER COMPLETE |
| 36 | 263002-9 | RUBBER PIN 4 |
| 37 | 265999-8 | TAPPING SCREW 4X25 |
| 38 | 265999-8 | TAPPING SCREW 4X25 |
| 39 | 651991-4 | SWITCH C3MA-2L-L |
| 40 | 265995-6 | TAPPING SCREW 4X18 |
| 41 | 687063-9 | CORD CLAMP |
| 42 | 666066-6 | POWER SUPPLY CORD 1.0-2-2.5 |
| 43 | 682559-5 | CORD GUARD 8 |
| 44 | 417358-4 | SLIDE LEVER |
| 45 | 643948-9 | BRUSH HOLDER |
| 46 | 191962-4 | CARBON BRUSH CB-419 |
| 47 | 819063-3 | MAKITA LABEL |
| 48 | 266060-4 | TAPPING SCREW 4X65 |
| 49 | 442134-7 | GASKET |
| 134903-7 | GRIP 36 ASS'Y | |
| INC. 7,8,20 | ||
| 645105-5 | NOISE SUPPRESSOR |
