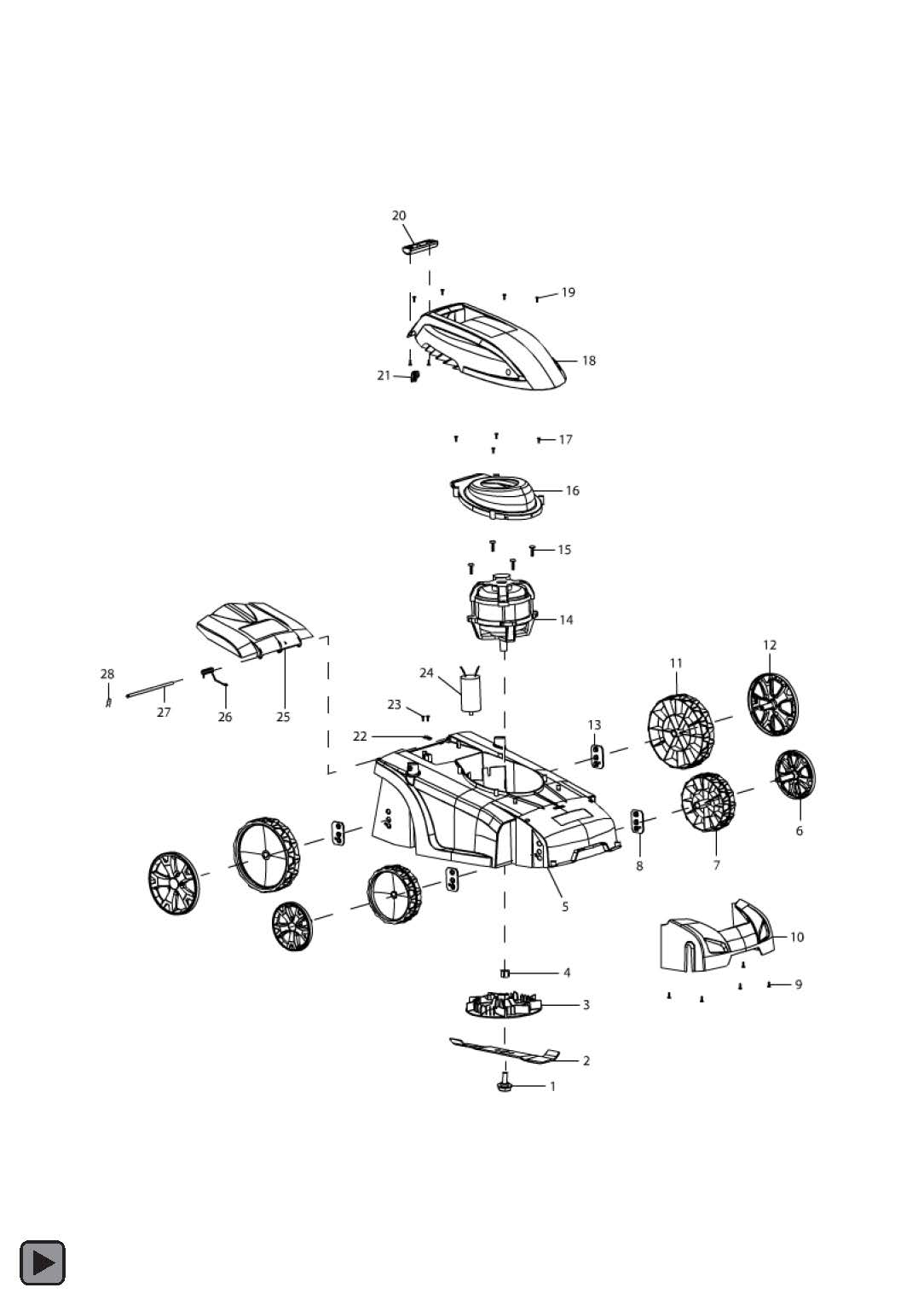

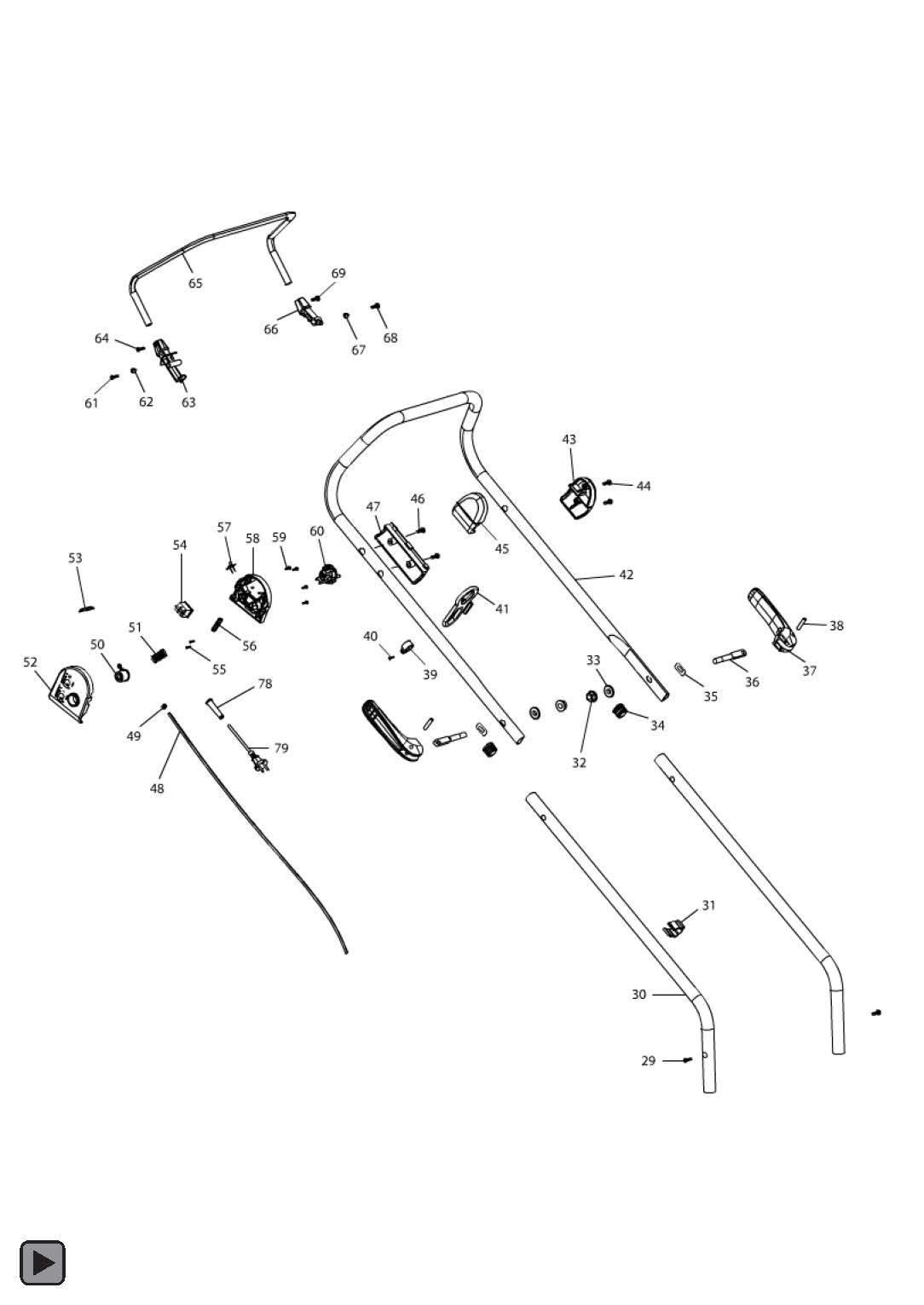

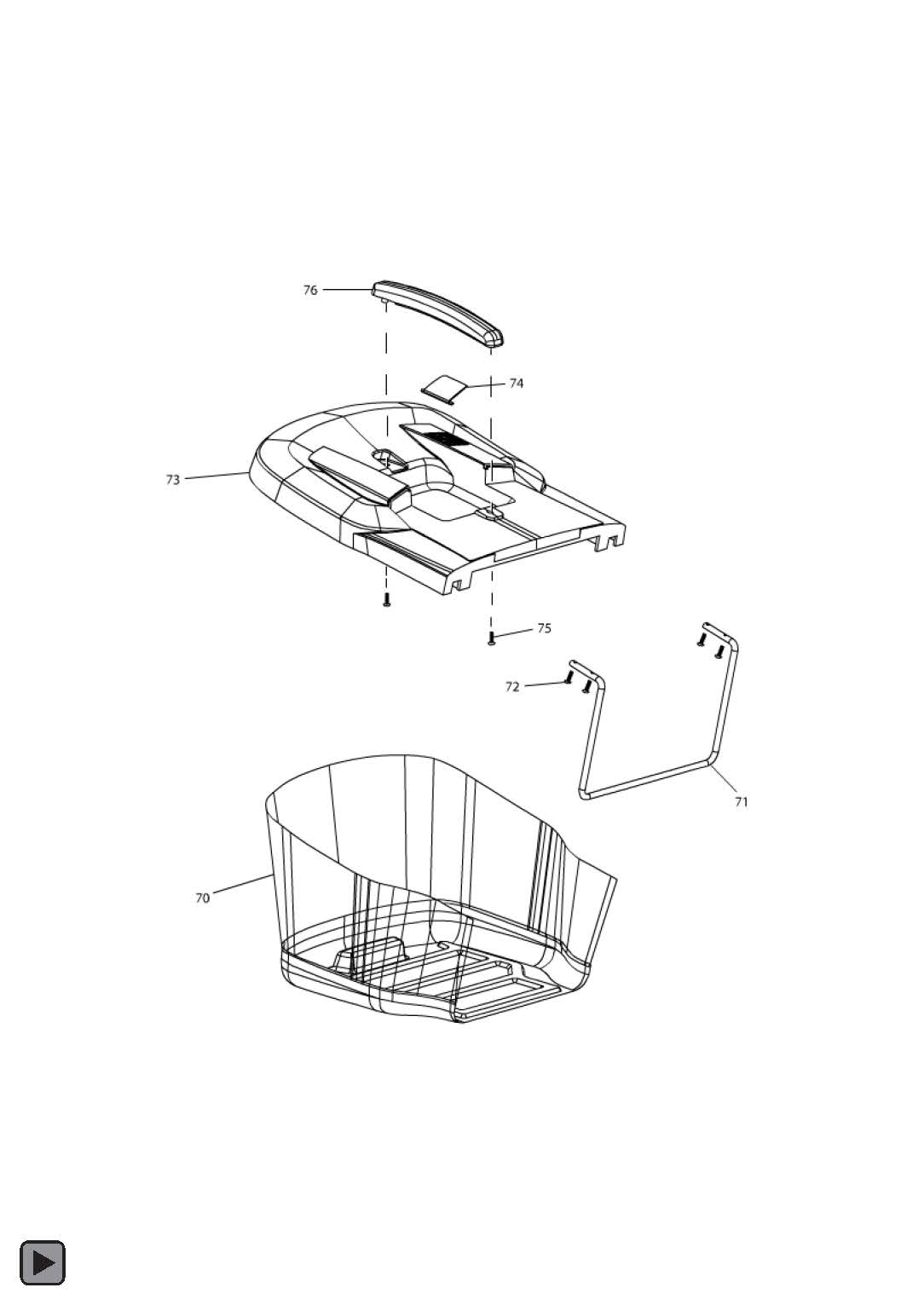

Rasklopna sema za Makita - ELM3711

Broj dela	Šifra dela	Naziv dela
1	671100802	BLADE TIGHTEN BOLT M101.3540
2	671002549	BLADE
3	DA00000808	MOTOR CENTRIFUGAL CUTTER
4	671002036	CENTRIFUGAL CUTTER BUSHING
5	671981001	DECK
6	671003028	5.5" WHEEL COVER
7	671919001	5.5" WHEEL
8	671002281	THREAD PRESSING PLATE
9	671107301	SELF-TAPPING SCREW ST4*16
10	671980001	HEAD COVER
11	671920001	7" WHEEL
12	671003029	7" WHEEL COVER
13	671002281	THREAD PRESSING PLATE
14	DA00000823	MOTOR
15	671001053	SELF-TAPPING SCREW ST6*30
16	671983001	MOTOR WIND GUIDE COVER
17	671107301	SELF-TAPPING SCREW ST4*16
18	671982001	MOTOR COVER
19	671107301	SELF-TAPPING SCREW ST4*16
20	671984001	MOTOR COVER HANDLE
21	DA00000810	CONNECTION CABLE SHEATH
22	671010230	CABLE PRESSING PLATE
23	671107301	SELF-TAPPING SCREW ST4*16
24	671003060	CAPACITOR
25	671987001	REAR FLAP
26	671011214	SPRING OF REAR FLAP
27	671010790	FIXED SHAFT OF REAR FLAP
28	671090005	CLAMP PIN
29	671001046	SELF-TAPPING SCREW ST4.8*19
30	671001712	LOWER HANDLE BAR
31	671277001	CABLE CLAMP
32	671050160	LID SHAPE SCREW M6*11
33	671007007	FLAT WASHER M8
34	DA00000811	TUBE PLUG
35	DA00000812	PRESSING TIGHTEN PLATE
36	671002466	TIGHTEN LOCKING BOLT M6*62
37	671431001	ADJUSTMENT SELF-LOCKING HANDLE
38	671090040	COLUMN PIN
39	671108303	BLOCK RING
40	DA00000826	SELF-DRIVING SCREW ST4*12
41	671001052	COIL OF CABLE HITCH
42	671016150	UPPER HANDLE BAR
43	671073001	HANDLE SUPPORT(LEFT)
44	671107301	SELF-TAPPING SCREW ST4*16
45	671074001	HANDLE SUPPORT(RIGHT)
46	671107301	SELF-TAPPING SCREW ST4*16
47	671428001	PRESSING PLATE OF SWITCH BOX
48	DA00000824	CONNECTION CABLE
49	DA00000818	CONNECTION CABLE SHEATH1
50	671425003	SAFETY BUTTON
51	671011079	SPRING OF TRANSFER BOARD
52	671070001	WATER-PROOF SWITCH BOX(RIGHT)
53	671001043	LAMPSHADE
54	671010040	ARC SWITCH
55	671107301	SELF-TAPPING SCREW ST4*16
56	DA00000814	CABLE PRESSING BOARD
57	DA00000813	INDICATION LIGHT
58	671069001	WATERPROOF SWITCH BOX(LEFT)
59	671107301	SELF-TAPPING SCREW ST4*16
60	DA00000815	WATERPROOF PLUG
61	DA00000816	SELF-DRIVING SCREW ST3*10
62	671011124	SPRING OF RIGHT PLUG-IN
63	671072001	HANDLE RIGHT PLUG-IN
64	671001021	SELF-TAPPING SCREW ST4*10
65	671001714	START BAR
66	DA00000817	HANDLE LEFT PLUG-IN
67	671011124	SPRING OF RIGHT PLUG-IN
68	DA00000816	SELF-DRIVING SCREW ST3*10
69	671001021	SELF-TAPPING SCREW ST4*10
70	671015940	GRASS CATCHER(MAKITA)
71	671002387	GRASS CATCHER BRACKET
72	671107301	SELF-TAPPING SCREW ST4*16
73	671985001	COVER OF GRASS CATCHER
74	671010720	LEVEL INDICATOR
75	671107301	SELF-TAPPING SCREW ST4*16
76	671988001	HANDLE OF GRASS CATCHER
77	DA00000830	GRASS CATCHER ASS'Y(MAKITA)
		INC. 70-76
	671002009	SPANNER
