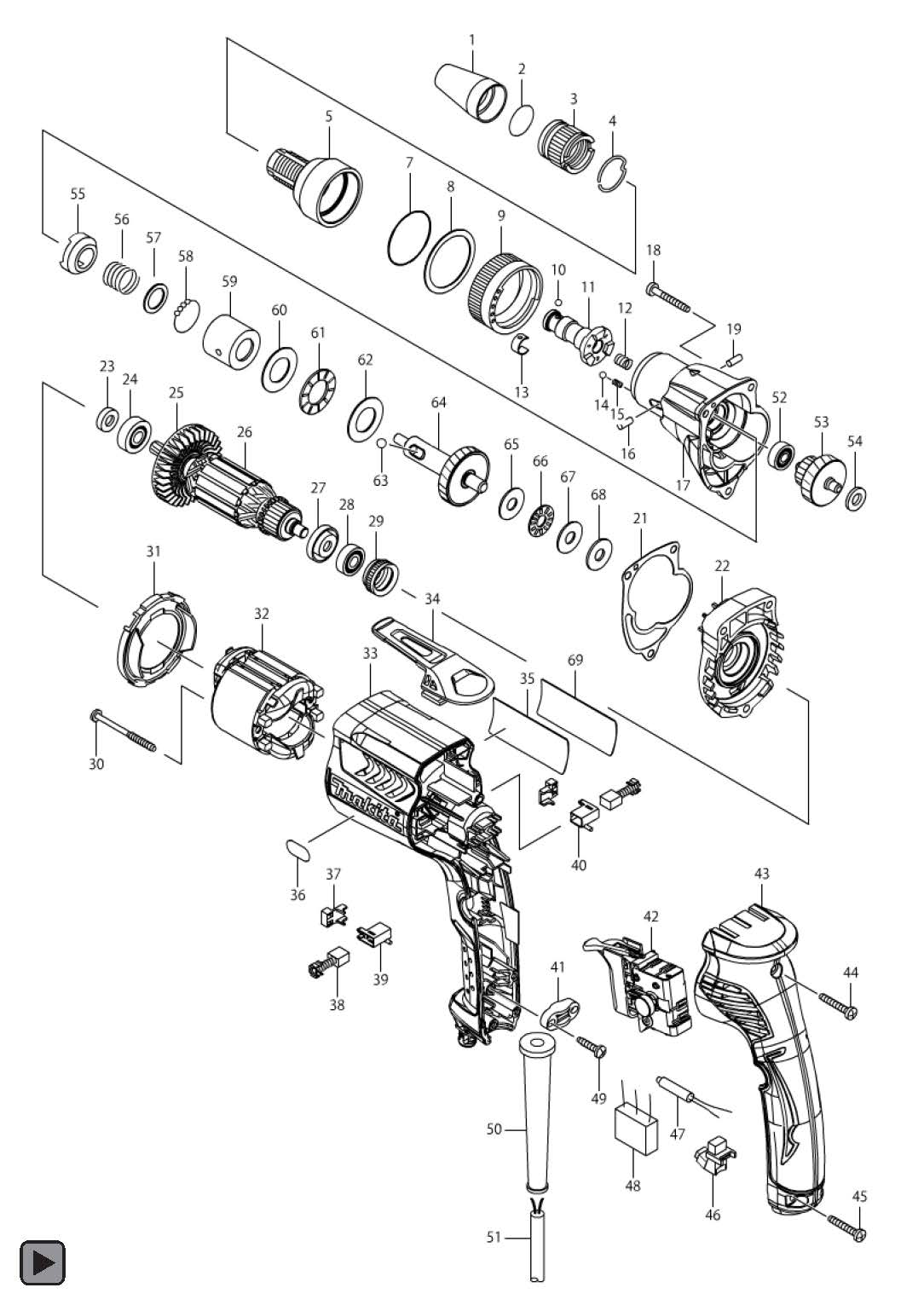

| Broj dela | Šifra dela | Naziv dela |
|---|---|---|
| 1 | 322120-3 | FRONT CAP 12 |
| 2 | 213310-8 | O RING 20 |
| 3 | 322073-6 | ADJUST SLEEVE |
| 4 | 231940-3 | RING SPRING 22 |
| 5 | 168552-8 | CLUTCH COVER A COMPLETE |
| 5 | 313166-0 | BRAKE RING |
| 7 | 213343-3 | O RING 35 |
| 8 | 253806-7 | FLAT WASHER 36 |
| 9 | 152841-1 | RING 36 COMPLETE |
| 10 | 216001-0 | STEEL BALL 3.5 |
| 11 | 325606-6 | SPINDLE 270D |
| 12 | 234095-3 | COMPRESSION SPRING 6 |
| 13 | 232050-9 | LEAF SPRING |
| 14 | 216008-6 | STEEL BALL 4 |
| 15 | 233314-4 | COMPRESSION SPRING 4 |
| 16 | 268075-7 | PIN 4 |
| 17 | 318387-9 | GEAR HOUSING TC |
| 18 | 266361-0 | TAPPING SCREW 4X30 |
| 19 | 268075-7 | PIN 4 |
| 21 | 442149-4 | GASKET |
| 22 | 158982-1 | GEAR HOUSING COVER COMPLETE |
| 23 | 451099-2 | RING 7 |
| 24 | 210007-0 | BALL BEARING 608VV |
| 25 | 240083-0 | FAN 52 |
| 26 | 515764-8 | ARMATURE ASSEMBLY 240V |
| INC. 23-25,27,28 | ||
| 27 | 681636-0 | INSULATION WASHER |
| 28 | 210062-2 | BALL BEARING 607ZZ |
| 29 | 421868-5 | LABYRINTH RUBBER RING 19 |
| 30 | 266467-4 | TAPPING SCREW 4X50 |
| 31 | 450880-8 | BAFFLE PLATE |
| 32 | 633693-4 | FIELD 220-240V |
| 33 | 450878-5 | MOTOR HOUSING L |
| 34 | 162272-6 | HOOK |
| 35 | 867048-3 | FS2700 NAME PLATE |
| 36 | 808574-3 | INDICATION LABEL |
| 37 | 689111-0 | SPACER |
| 38 | 191962-4 | CARBON BRUSH CB-419 |
| 39 | 643952-8 | BRUSH HOLDER |
| 40 | 643953-6 | BRUSH HOLDER |
| 41 | 687124-5 | STRAIN RELIEF |
| 42 | 650614-1 | SWITCH |
| 43 | 158878-6 | HANDLE COVER L COMPLETE |
| 43 | 263002-9 | RUBBER PIN 4 |
| 44 | 266374-1 | TAPPING SCREW 4X25 |
| 45 | 266374-1 | TAPPING SCREW 4X25 |
| 46 | 631939-2 | LIGHT CIRCUIT |
| 47 | 646122-8 | CHOKE COIL |
| 48 | 645253-0 | NOISE SUPPRESSOR |
| 49 | 265995-6 | TAPPING SCREW 4X18 |
| 50 | 682559-5 | CORD GUARD 8 |
| 51 | 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 |
| 52 | 211012-0 | BALL BEARING 606ZZ |
| 53 | 226157-1 | GEAR COMPLETE 17-39 |
| 54 | 267017-8 | FLAT WASHER 8 |
| 55 | 223073-8 | CLUTCH CAM |
| 56 | 231423-3 | COMPRESSION SPRING 13.6 |
| 57 | 253837-6 | FLAT WASHER 14 |
| 58 | 216014-1 | STEEL BALL 3.2 |
| 59 | 324209-3 | SLEEVE |
| 60 | 216216-9 | WASHER 1730 |
| 61 | 216423-4 | THRUST NEEDLE CAGE 1730 |
| 62 | 216216-9 | WASHER 1730 |
| 63 | 216011-7 | STEEL BALL 5.6 |
| 64 | 158892-2 | SPUR GEAR 35 COMPLETE |
| 65 | 216212-7 | WASHER 821 |
| 66 | 216415-3 | THRUST NEEDLE GAUGE 821 |
| 67 | 216212-7 | WASHER 821 |
| 68 | 261111-8 | URETHANE WASHER 8 |
| 69 | 892811-5 | CLEAR LABEL |
