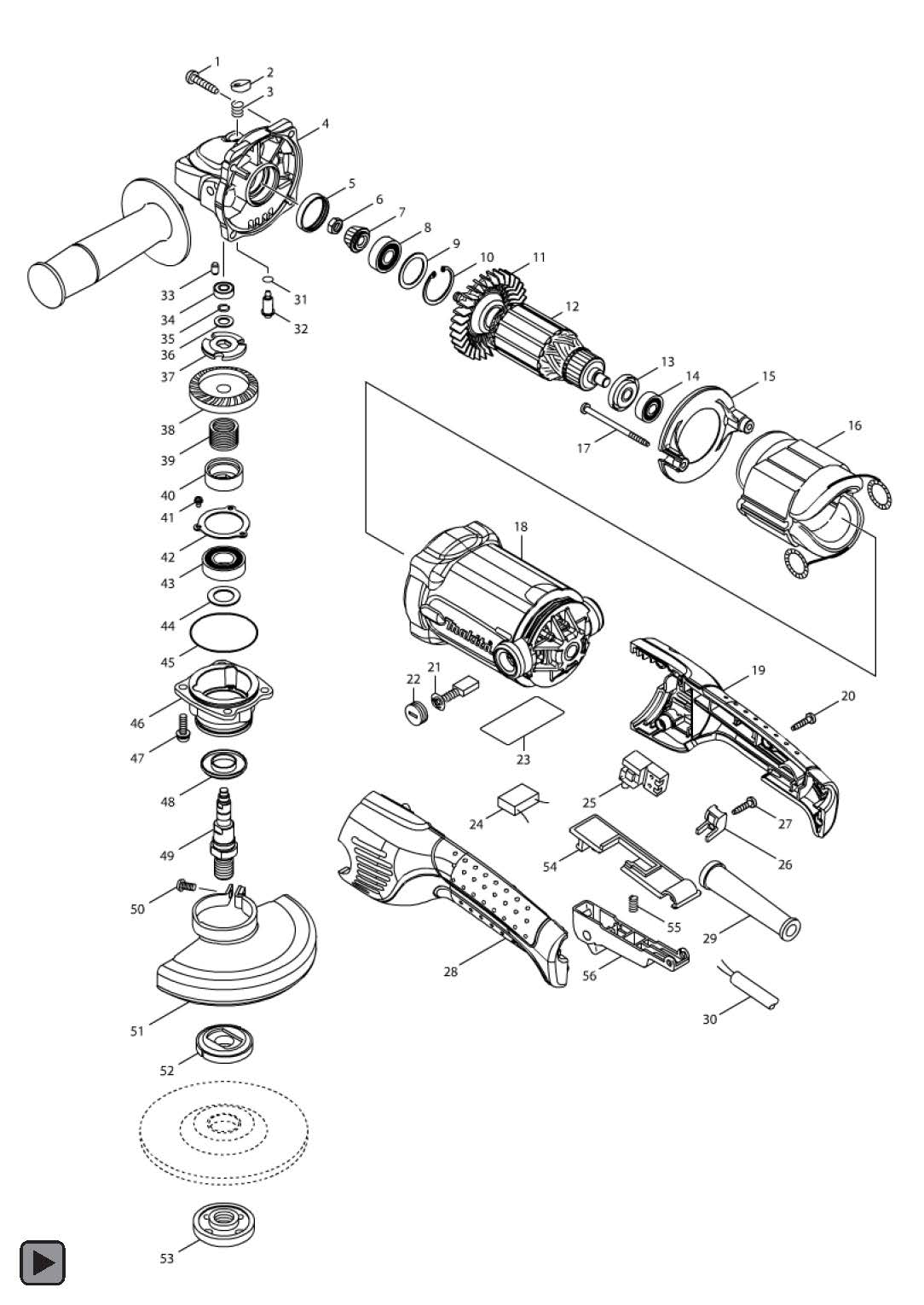

| Broj dela | Šifra dela | Naziv dela |
|---|---|---|
| 1 | 266041-8 | TAPPING SCREW 5X25 |
| 2 | 417771-6 | PIN CAP |
| 3 | 234057-1 | COMPRESSION SPRING 8 |
| 4 | 318158-4 | GEAR HOUSING |
| 5 | 262132-3 | RUBBER RING 27 |
| 6 | 264010-3 | HEX.NUT M7 |
| 7 | 227517-0 | SPIRAL BEVEL GEAR 13 |
| 8 | 210059-1 | BALL BEARING 6000DDW |
| 9 | 267352-4 | FLAT WASHER 22 |
| 10 | 962107-9 | RETAINING RING (INT) R-30 |
| 11 | 240094-5 | FAN 70 |
| 12 | 510132-0 | ARMATURE ASS'Y 240V |
| INC. 11,13,14 | ||
| 13 | 681644-1 | INSULATION WASHER |
| 14 | 210005-4 | BALL BEARING 608DDW |
| 15 | 419961-7 | BAFFLE PLATE |
| 16 | 525803-6 | FIELD ASS'Y 220-240V |
| 16 | 654020-2 | RING TERMINAL |
| 16 | 654555-3 | CONNECTOR 34130 |
| 17 | 266340-8 | TAPPING SCREW 4X65 |
| 18 | 158278-0 | MOTOR HOUSING COMPLETE |
| 18 | 643708-9 | BRUSH HOLDER 5-11 |
| 19 | 188462-3 | HANDLE SET |
| INC. 28 | ||
| 20 | 266326-2 | TAPPING SCREW 4X18 |
| 21 | 191963-2 | CARBON BRUSH CB-303 |
| 22 | 643750-0 | BRUSH HOLDER CAP 7-11 |
| 23 | 864611-3 | GA5021 NAME PLATE |
| 24 | 645200-1 | NOISE SUPPRESSOR |
| 25 | 651922-3 | SWITCH TG71B |
| 26 | 687260-7 | STRAIN RELIEF |
| 27 | 266326-2 | TAPPING SCREW 4X18 |
| 28 | 188462-3 | HANDLE SET |
| INC. 19 | ||
| 29 | 682505-8 | CORD GUARD 10-90 |
| 30 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 |
| 31 | 213977-2 | O RING 7 |
| 32 | 256505-0 | SHOULDER PIN 5 |
| 33 | 263002-9 | RUBBER PIN 4 |
| 34 | 210006-2 | BALL BEARING 696ZZ |
| 35 | 233926-3 | RING SPRING 7 |
| 36 | 253835-0 | FLAT WASHER 8 |
| 37 | 267811-8 | LOCK WASHER |
| 38 | 227519-6 | SPIRAL BEVEL GEAR 34B |
| 39 | 233957-2 | LOCK SPRING 16 |
| 39 | 234356-1 | LOCK SPRING 16 |
| 40 | 324833-2 | LOCK SLEEVE |
| 41 | 911003-8 | PAN HEAD SCREW M3X6 |
| 42 | 285728-3 | BEARING RETAINER 39 |
| 43 | 211236-8 | BALL BEARING 6002DDW |
| 44 | 253853-8 | FLAT WASHER 15 |
| 45 | 213624-5 | O RING 48 |
| 46 | 318332-4 | BEARING BOX |
| 47 | 265131-4 | PAN HEAD SCREW M5X18 |
| 48 | 345464-4 | LABYRINTH RING |
| 49 | 324789-9 | SPINDLE |
| 50 | 265180-1 | PAN HEAD SCREW M5X16 |
| 51 | 123099-9 | WHEEL COVER 125AK ASSEMBLY |
| 51 | 213009-5 | O RING 4 |
| INC. 50 | ||
| 52 | 224415-9 | INNER FLANGE 42 |
| 53 | 224554-5 | LOCK NUT 14-45 |
| 54 | 418519-9 | SWITCH BASE |
| 55 | 233117-6 | COMPRESSION SPRING 6 |
| 56 | 158401-7 | SWITCH LEVER A COMPLETE |
| 56 | 158402-5 | SWITCH LEVER B COMPLETE |
| 153504-2 | GRIP 36 COMPLETE | |
| 782423-1 | LOCK NUT WRENCH 35 |
