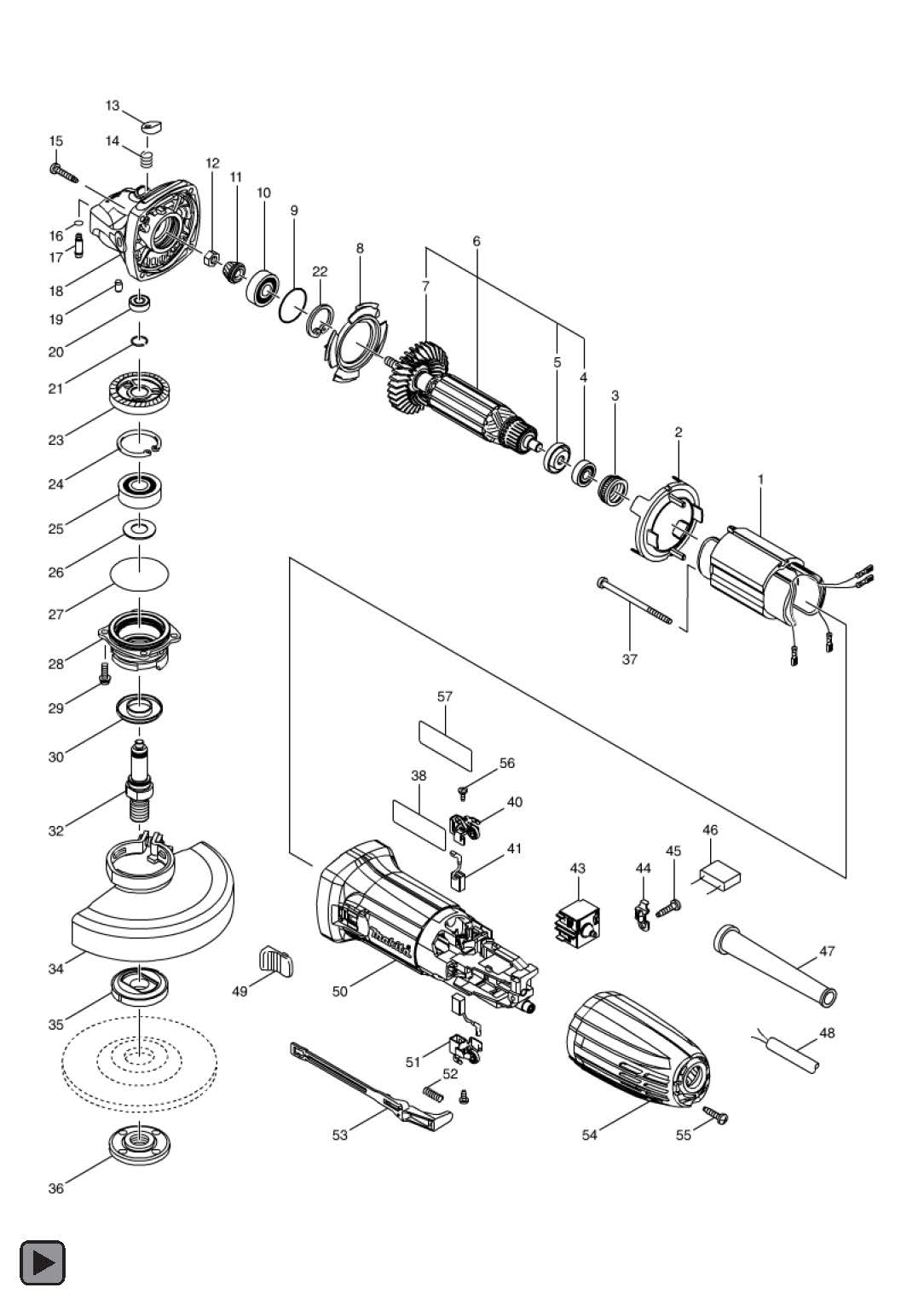

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
633903-9 |
FIELD 220-240V |
| 2 |
450796-7 |
BAFFLE PLATE |
| 3 |
421868-5 |
LABYRINTH RUBBER RING 19 |
| 4 |
210034-7 |
BALL BEARING 607LLB |
| 5 |
681636-0 |
INSULATION WASHER |
| 6 |
517649-4 |
ARMATURE ASS'Y 240V |
|
|
INC. 4,5,7 |
| 7 |
240139-9 |
FAN 56 |
| 8 |
413126-3 |
GUIDE PLATE |
| 9 |
213445-5 |
O-RING 26 |
| 10 |
211092-6 |
BALL BEARING 629DDW |
| 11 |
227545-5 |
SPIRAL BEVEL GEAR 10 |
| 12 |
252186-8 |
HEX. NUT M6 |
| 13 |
417771-6 |
PIN CAP |
| 14 |
234057-1 |
COMPRESSION SPRING 8 |
| 15 |
266324-6 |
TAPPING SCREW 4X22 |
| 16 |
213032-0 |
O RING 4 |
| 17 |
256510-7 |
SHOULDER PIN 4 |
| 18 |
318335-8 |
GEAR HOUSING |
| 19 |
263002-9 |
RUBBER PIN 4 |
| 20 |
210033-9 |
BALL BEARING 696ZZ |
| 21 |
233950-6 |
RING SPRING 11 |
| 22 |
962105-3 |
RETAINING RING R-26 |
| 23 |
227546-3 |
SPIRAL BEVEL GEAR 37 |
| 24 |
962151-6 |
RETAINING RING R-32 |
| 25 |
211129-9 |
BALL BEARING 6201DDW |
| 26 |
267113-2 |
FLAT WASHER 12 |
| 27 |
213561-3 |
O RING 42 |
| 28 |
318336-6 |
BEARING BOX |
| 29 |
265099-4 |
PAN HEAD SCREW M4X14 |
| 30 |
345464-4 |
LABYRINTH RING |
| 32 |
324954-0 |
SPINDLE |
| 34 |
123099-9 |
WHEEL COVER 125AK ASSEMBLY |
| 34 |
213009-5 |
O RING 4 |
| 34 |
265180-1 |
PAN HEAD SCREW M5X16 |
| 35 |
224415-9 |
INNER FLANGE 42 |
| 36 |
224554-5 |
LOCK NUT 14-45 |
| 37 |
266325-4 |
TAPPING SCREW 4X70 |
| 38 |
851S94-0 |
GA5030R NAME PLATE |
| 40 |
643839-4 |
BRUSH HOLDER 6X9 |
| 41 |
194722-3 |
CARBON BRUSH CB-459 |
| 43 |
650769-2 |
SWITCH |
| 44 |
687681-3 |
STRAIN RELIEF |
| 45 |
266326-2 |
TAPPING SCREW 4X18 |
| 46 |
638739-1 |
CAPACITOR UNIT |
| 47 |
682559-5 |
CORD GUARD 8 |
| 48 |
665394-6 |
POWER SUPPLY CORD 1.0-2-2.5 |
| 49 |
418016-5 |
SWITCH KNOB |
| 50 |
456380-6 |
MOTOR HOUSING |
| 51 |
643839-4 |
BRUSH HOLDER 6X9 |
| 52 |
233121-5 |
COMPRESSION SPRING 4 |
| 53 |
450797-5 |
SWITCH LEVER |
| 54 |
456381-4 |
REAR COVER |
| 55 |
266326-2 |
TAPPING SCREW 4X18 |
| 56 |
266492-5 |
TAPPING SCREW 3X8 |
| 57 |
806E99-1 |
CLEAR LABEL |
|
153489-2 |
GRIP 36 COMPLETE |
|
782423-1 |
LOCK NUT WRENCH 35 |
|
A-80933 |
GRINDING WHEEL 125X6X22(A36P) |
|
808153-7 |
SAFETY INSTRUCTION LABEL |
