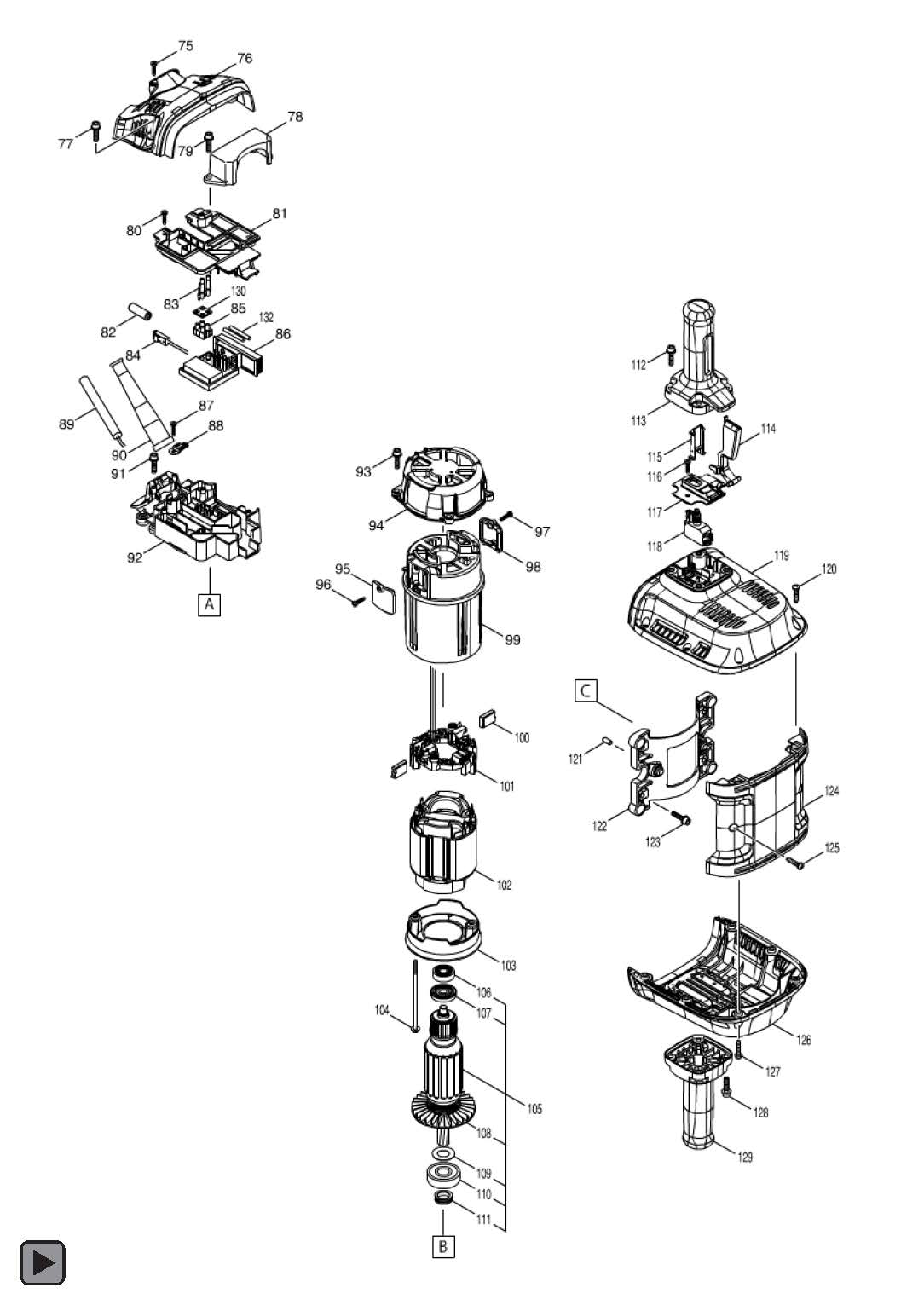

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
324236-0 |
TOOL RETAINER |
| 2 |
322477-2 |
TOOL RETAINER POLE |
| 3 |
256219-1 |
PIN 4 |
| 4 |
310616-6 |
TOOL HOLDER 29 |
| 5 |
233083-7 |
COMPRESSION SPRING 12 |
| 6 |
322560-5 |
RETAINER RING |
| 7 |
213757-6 |
O RING 80 |
| 8 |
951272-9 |
SPRING PIN 8-40 |
| 9 |
324238-6 |
TOOL RETAINER SHAFT |
| 10 |
265989-1 |
HEX. SOCKET BOLT M12X45 |
| 11 |
942301-9 |
SPRING WASHER 12 |
| 12 |
213797-4 |
X-RING 47 |
| 13 |
213798-2 |
O-RING 47 |
| 14 |
326469-3 |
IMPACT BOLT |
| 15 |
332127-1 |
WASHER 42 |
| 16 |
262174-7 |
RUBBER RING 47 |
| 17 |
332127-1 |
WASHER 42 |
| 18 |
319218-5 |
BARREL |
| 19 |
450347-6 |
CAP |
| 20 |
213953-6 |
O RING 24 |
| 21 |
922677-0 |
HEX. SOCKET BOLT M12X55 |
| 22 |
942301-9 |
SPRING WASHER 12 |
| 23 |
424666-6 |
SEAL RING A |
| 26 |
326470-8 |
STRIKER |
| 27 |
213799-0 |
O-RING 56 |
| 28 |
332130-2 |
CYLINDER LINER 66 |
| 32 |
332131-0 |
SPACER |
| 34 |
268328-4 |
PIN 15 C |
| 35 |
213799-0 |
O-RING 56 |
| 36 |
455509-1 |
PISTON |
| 37 |
213662-7 |
O RING 55 |
| 38 |
455490-6 |
CONNECTING ROD |
| 39 |
424669-0 |
BELLOWS |
| 40 |
211151-6 |
BALL BEARING 6306LLB |
| 41 |
227797-8 |
HELICAL GEAR 57 |
| 42 |
267290-0 |
FLAT WASHER 18 |
| 43 |
226834-5 |
GEAR COMPLETE 23-59 |
| 44 |
212099-5 |
NEEDLE CAGE 1816 |
| 45 |
267290-0 |
FLAT WASHER 18 |
| 46 |
424667-4 |
SEAL RING B |
| 47 |
455491-4 |
GEAR COVER |
| 48 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 49 |
455500-9 |
SIDE COVER B |
| 50 |
850X58-1 |
HM1802 SERIAL NO. LABEL |
| 51 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 52 |
850U11-9 |
HM1802 NAME PLATE |
| 53 |
424668-2 |
FILTER CAP |
| 54 |
443127-7 |
FILTER |
| 55 |
455513-0 |
CRANK CAP |
| 63 |
213902-3 |
O RING 135 |
| 65 |
310618-2 |
CRANK SHAFT |
| 66 |
211500-7 |
BALL BEARING 6307LLU |
| 67 |
256559-7 |
FLAT FILLISTER HD PIN 6 |
| 68 |
455506-7 |
HANDLE C |
| 69 |
455503-3 |
CENTER COVER |
| 70 |
234350-3 |
COMPRESSION SPRING 12B |
| 71 |
326471-6 |
ROD 10 |
| 72 |
142923-7 |
CRANK HOUSING COMPLETE |
| 73 |
455503-3 |
CENTER COVER |
| 74 |
455506-7 |
HANDLE C |
| 75 |
265995-6 |
TAPPING SCREW 4X18 |
| 76 |
455499-8 |
SIDE COVER A |
| 77 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 78 |
455510-6 |
BRACKET |
| 79 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 80 |
265995-6 |
TAPPING SCREW 4X18 |
| 81 |
455495-6 |
CAP COVER |
| 82 |
688165-4 |
LINE FILTER |
| 83 |
455514-8 |
LENS |
| 84 |
632E02-4 |
LEAD UNIT |
| 85 |
654531-7 |
TERMINAL BLOCK 2P |
| 86 |
620363-4 |
CONTROLLER |
| 87 |
265995-6 |
TAPPING SCREW 4X18 |
| 88 |
687169-3 |
STRAIN RELIEF |
| 89 |
695123-3 |
POWER SUPPLY CORD 1.5-2-4.0 |
| 90 |
682560-0 |
CORD GUARD 10 |
| 91 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 92 |
455494-8 |
CRANK HOUSING CAP |
| 93 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 94 |
319220-8 |
BEARING BOX |
| 95 |
455498-0 |
BRUSH HOLDER COVER |
| 96 |
265995-6 |
TAPPING SCREW 4X18 |
| 97 |
265995-6 |
TAPPING SCREW 4X18 |
| 98 |
455498-0 |
BRUSH HOLDER COVER |
| 99 |
455496-4 |
MOTOR HOUSING |
| 100 |
197129-2 |
CARBON BRUSH CB-218 |
| 101 |
632E01-6 |
BRUSH HOLDER UNIT |
| 102 |
636409-6 |
FIELD 240V |
| 103 |
455497-2 |
BAFFLE PLATE |
| 104 |
266922-6 |
+ HEX. BOLT M5X120 WITH GM |
| 105 |
517914-1 |
ARMATURE ASS'Y 240V |
|
|
INC. 106-111 |
| 106 |
211087-9 |
BALL BEARING 6200DDW |
| 107 |
681630-2 |
INSULATION WASHER |
| 108 |
240156-9 |
FAN 90 |
| 109 |
267487-1 |
FLAT WASHER 17 |
| 110 |
211152-4 |
BALL BEARING 6303LLU |
| 111 |
332129-7 |
SEALING SCREW |
| 112 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 113 |
455504-1 |
HANDLE A |
| 114 |
455508-3 |
SWITCH LEVER |
| 115 |
455511-4 |
SWITCH GUIDE |
| 116 |
265995-6 |
TAPPING SCREW 4X18 |
| 117 |
455507-5 |
SWITCH COVER |
| 118 |
650738-3 |
SWITCH C3JW-C-P |
| 119 |
455502-5 |
HANDLE BASE A |
| 120 |
266041-8 |
TAPPING SCREW 5X25 |
| 121 |
256269-6 |
PIN 6 |
| 122 |
319222-4 |
BASE |
| 123 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 124 |
455501-7 |
HEAD COVER |
| 125 |
266041-8 |
TAPPING SCREW 5X25 |
| 126 |
455512-2 |
HANDLE BASE B |
| 127 |
266041-8 |
TAPPING SCREW 5X25 |
| 128 |
266923-4 |
H.S.HEAD BOLT M6X25 WITH GM |
| 129 |
455505-9 |
HANDLE B |
| 130 |
685756-2 |
RUBBER SHEET |
| 131 |
135669-2 |
TOOL HOLDER ASS'Y |
|
|
INC. 1-6,8,9 |
| 132 |
684970-7 |
GLASS CLOTH TUBE 3.5-45 |
| 132 |
684670-9 |
VARNISHED POLYESTER TUBE |
|
783203-8 |
HEX. WRENCH 5 |
|
B-10372 |
28.6MM HEX SELF SHARPENING |
|
801S45-3 |
SOUND 108DB LABEL |
