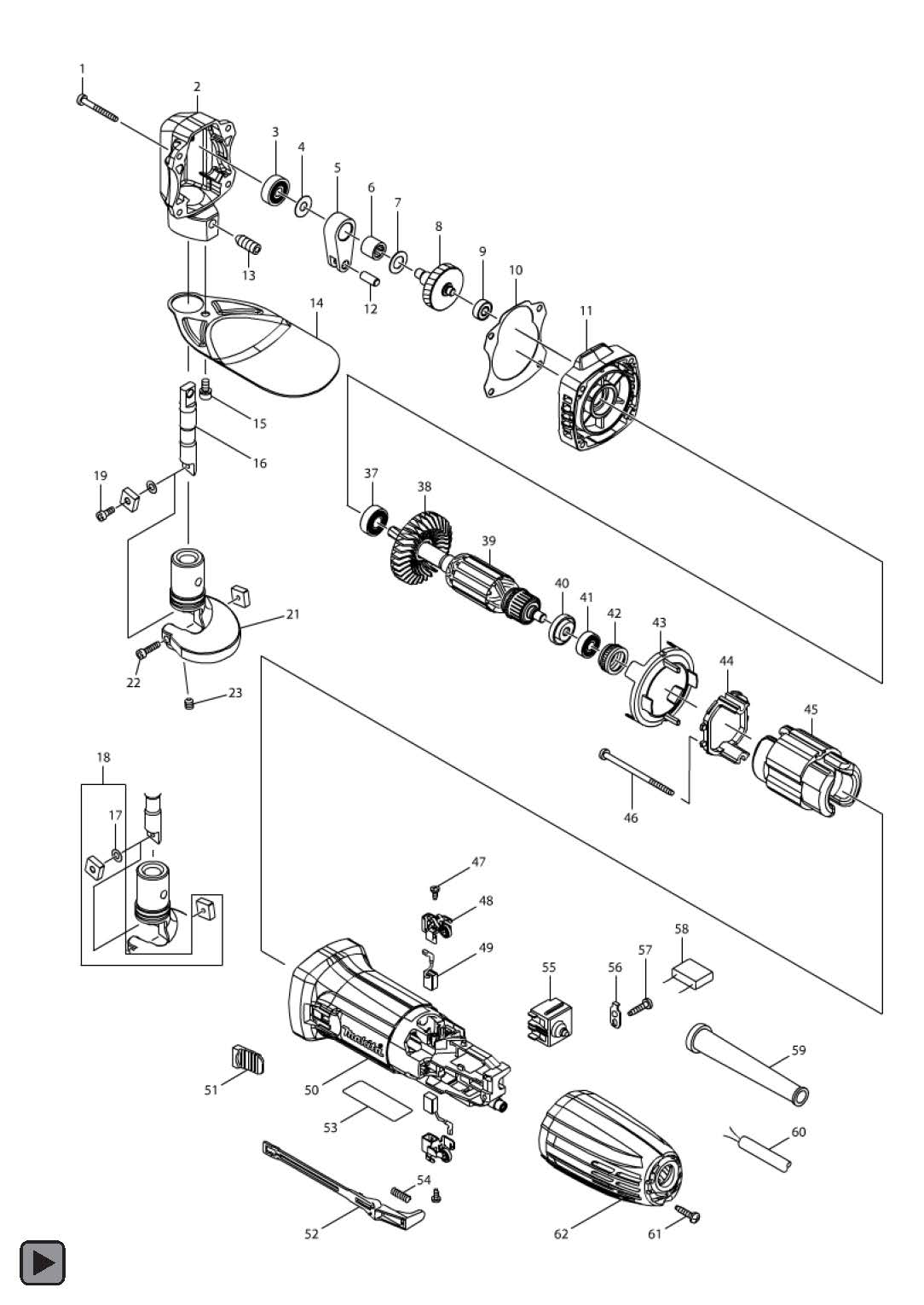

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
266053-1 |
TAPPING SCREW 4X35 |
| 2 |
141691-9 |
GEAR HOUSING COMPLETE |
| 2 |
800H33-1 |
INDICATION LABEL |
| 3 |
210030-5 |
BALL BEARING 627ZZ |
| 4 |
253823-7 |
FLAT WASHER 7 |
| 5 |
331151-1 |
ROD |
| 6 |
212063-6 |
NEEDLE BEARING 1012 |
| 7 |
253758-2 |
FLAT WASHER 10 |
| 8 |
141690-1 |
CRANK SHAFT COMPLETE |
| 8 |
227760-1 |
HELICAL GEAR 44 |
| 9 |
210033-9 |
BALL BEARING 696ZZ |
| 10 |
442185-0 |
GASKET |
| 11 |
454076-3 |
GEAR HOUSING COVER |
| 12 |
256110-3 |
PIN 6 |
| 13 |
913427-4 |
SET SCREW M8X16 |
| 14 |
346620-9 |
PROTECTOR |
| 15 |
922206-9 |
HEX. SOCKET HEAD BOLT M5X10 |
| 16 |
321311-3 |
BLADE HOLDER |
| 17 |
253334-2 |
THIN WASHER 5 |
| 18 |
191383-0 |
SHEAR BLADE SET |
|
|
INC. 17 |
| 19 |
922112-8 |
HEX. SOCKET HEAD BOLT M4X10 |
| 21 |
311717-3 |
YOKE |
| 22 |
922127-5 |
HEX. SOCKET HEAD BOLT M4X16 |
| 23 |
251986-3 |
H.S.SET SCREW(FLAT POINT)M6X6 |
| 37 |
210005-4 |
BALL BEARING 608DDW |
| 38 |
240076-7 |
FAN 56 |
| 39 |
517674-5 |
ARMATURE ASS'Y 240V |
|
|
INC. 37,38,40,41 |
| 40 |
681636-0 |
INSULATION WASHER |
| 41 |
210062-2 |
BALL BEARING 607ZZ |
| 42 |
421868-5 |
LABYRINTH RUBBER RING 19 |
| 43 |
450796-7 |
BAFFLE PLATE |
| 44 |
452073-3 |
SPACER |
| 45 |
623549-9 |
FIELD |
| 46 |
266004-4 |
TAPPING SCREW 4X70 |
| 47 |
265954-0 |
TAPPING SCREW BIND PT3X8 |
| 48 |
643839-4 |
BRUSH HOLDER 6X9 |
| 49 |
194722-3 |
CARBON BRUSH CB-459 |
| 50 |
450795-9 |
MOTOR HOUSING |
| 51 |
418016-5 |
SWITCH KNOB |
| 52 |
450797-5 |
SWITCH LEVER |
| 53 |
897764-3 |
JS1602 NAME PLATE |
| 54 |
233121-5 |
COMPRESSION SPRING 4 |
| 55 |
650621-4 |
SWITCH PS10 |
| 56 |
687682-1 |
STRAIN RELIEF |
| 57 |
265995-6 |
TAPPING SCREW 4X18 |
| 58 |
638739-1 |
CAPACITOR UNIT |
| 59 |
682566-8 |
CORD GUARD 10 |
| 60 |
665890-4 |
POWER SUPPLY CORD 1.0-2-4.0 |
| 61 |
265995-6 |
TAPPING SCREW 4X18 |
| 62 |
453884-9 |
REAR COVER |
|
410048-8 |
WRENCH HOLDER 3.4 |
|
783201-2 |
HEX. WRENCH 3 |
