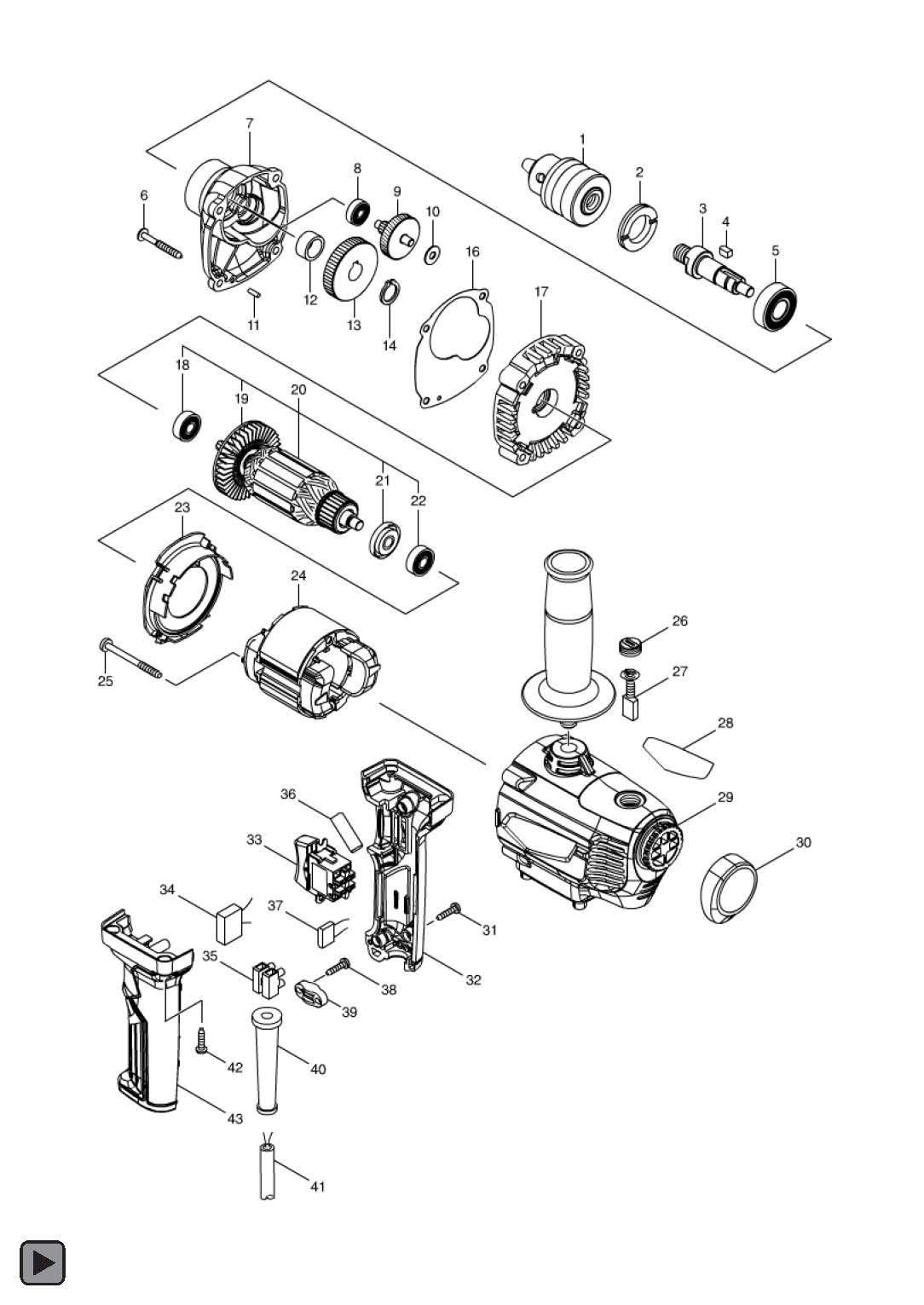

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
766023-5 |
DRILL CHUCK S13 |
| 2 |
285848-3 |
BEARING RETAINER 23-36 |
| 3 |
326600-1 |
SPINDLE |
| 4 |
254211-1 |
KEY 5 |
| 5 |
211487-3 |
BALL BEARING 6202DDW |
| 6 |
266211-9 |
TAPPING SCREW 5X40 |
| 7 |
142841-9 |
GEAR HOUSING COMPLETE |
| 7 |
263002-9 |
RUBBER PIN 4 |
| 8 |
211499-6 |
BALL BEARING 626ZZ |
| 9 |
226028-2 |
GEAR COMPLETE 7-41 |
| 10 |
253804-1 |
FLAT WASHER 6 |
| 11 |
256180-2 |
PIN 3 |
| 12 |
257018-4 |
RING 15 |
| 13 |
221261-1 |
SPUR GEAR 47 |
| 14 |
961054-1 |
RETAINING RING S-14 |
| 16 |
442207-6 |
GASKET |
| 17 |
142840-1 |
GEAR HOUSING COVER COMPLETE |
| 17 |
263002-9 |
RUBBER PIN 4 |
| 18 |
210029-0 |
BALL BEARING 608ZZ |
| 19 |
241850-6 |
FAN 60 |
| 20 |
513919-9 |
ARMATURE ASS'Y 240V |
|
|
INC. 18,19,21,22 |
| 21 |
681644-1 |
INSULATION WASHER |
| 22 |
210029-0 |
BALL BEARING 608ZZ |
| 23 |
455343-9 |
BAFFLE PLATE |
| 24 |
594659-8 |
FIELD ASS'Y 240V |
| 24 |
654020-2 |
RING TERMINAL |
| 24 |
654501-6 |
CONNECTOR P-1.25 |
| 25 |
266418-7 |
TAPPING SCREW 5X55 |
| 26 |
644500-6 |
HOLDER CAP 7X11 |
| 27 |
191963-2 |
CARBON BRUSH CB-303 |
| 28 |
850W10-3 |
M6201 NAME PLATE |
| 29 |
143121-6 |
MOTOR HOUSING COMPLTE |
| 29 |
644501-4 |
BRUSH HOLDER 5X11 |
| 30 |
424654-3 |
CAP |
| 31 |
266326-2 |
TAPPING SCREW 4X18 |
| 32 |
183B03-2 |
SWITCH HANDLE SET |
|
|
INC. 43 |
| 32 |
187945-0 |
SWITCH HANDLE SET |
|
|
INC. 43 |
| 33 |
650732-5 |
SWITCH TN55 |
| 34 |
645190-8 |
NOISE SUPPRESSOR |
| 35 |
654531-7 |
TERMINAL BLOCK 2P |
| 36 |
688165-4 |
LINE FILTER |
| 37 |
646755-9 |
RESISTOR |
| 38 |
266326-2 |
TAPPING SCREW 4X18 |
| 39 |
687124-5 |
STRAIN RELIEF |
| 40 |
682566-8 |
CORD GUARD 10 |
| 41 |
665852-2 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 41 |
695454-0 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 42 |
266326-2 |
TAPPING SCREW 4X18 |
| 43 |
183B03-2 |
SWITCH HANDLE SET |
|
|
INC. 32 |
| 43 |
187945-0 |
SWITCH HANDLE SET |
|
|
INC. 32 |
|
142088-5 |
GRIP 36 COMPLETE |
|
418163-2 |
KEY HOLDER 10 |
|
763453-1 |
CHUCK KEY S13 |
