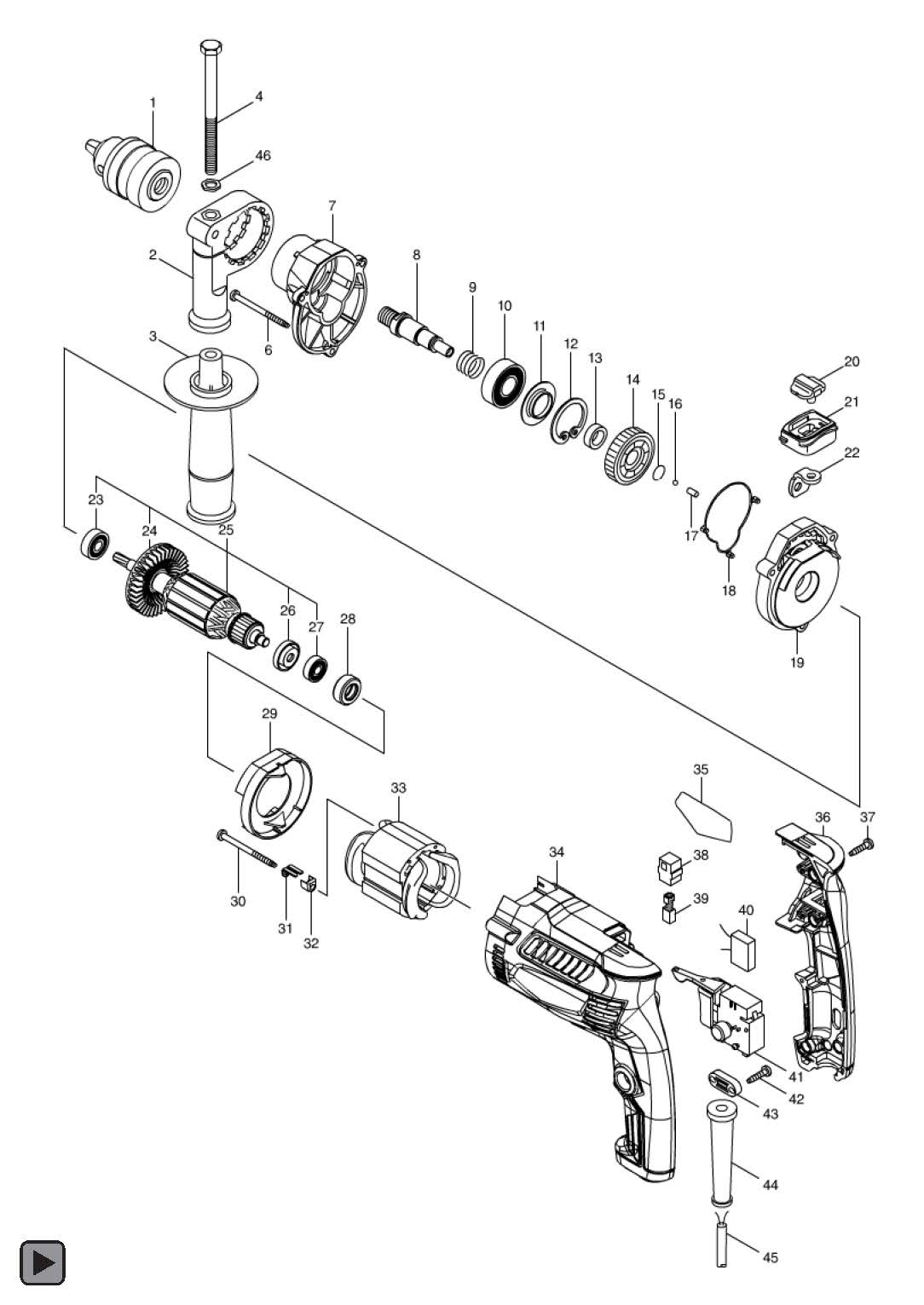

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
763161-4 |
DRILL CHUCK S13 |
| 1 |
763232-7 |
DRILL CHUCK S13 |
| 2 |
417822-5 |
GRIP BASE |
| 3 |
153503-4 |
GRIP 36 COMPLETE |
| 4 |
265495-6 |
HEX. BOLT M8X110 |
| 6 |
266361-0 |
TAPPING SCREW 4X30 |
| 7 |
451907-7 |
GEAR HOUSING |
| 8 |
324223-9 |
SPINDLE |
| 9 |
233330-6 |
COMPRESSION SPRING 16 |
| 10 |
211241-5 |
BALL BEARING 6202DDW |
| 11 |
257246-1 |
RING 19 |
| 12 |
962153-2 |
RETAINING RING R-35 |
| 13 |
257173-2 |
RING 12 |
| 14 |
226589-2 |
HELICAL GEAR 37 |
| 15 |
233938-6 |
RING SPRING 12 |
| 16 |
216001-0 |
STEEL BALL 3.5 |
| 17 |
256251-5 |
PIN 4 |
| 18 |
424112-9 |
SEAL RING |
| 19 |
140426-5 |
GEAR HOUSING COVER COMPLETE |
| 20 |
417819-4 |
CHANGE LEVER |
| 21 |
453921-9 |
LEVER CASE |
| 21 |
451908-5 |
LEVER CASE |
| 22 |
345944-0 |
CHANGE PLATE |
| 23 |
211031-6 |
BALL BEARING 608LLB |
| 24 |
241869-5 |
FAN 55 |
| 25 |
510164-7 |
ARMATURE ASSEMBLY 240V |
|
|
INC. 23,24,26,27 |
| 26 |
681636-0 |
INSULATION WASHER |
| 27 |
210062-2 |
BALL BEARING 607ZZ |
| 28 |
421808-3 |
RUBBER RING 19 |
| 29 |
450620-4 |
BAFFLE PLATE |
| 30 |
266415-3 |
TAPPING SCREW 4X55 |
| 31 |
344871-8 |
RETAINER |
| 32 |
417237-6 |
INSULATION COVER |
| 33 |
626604-6 |
FIELD 240V |
| 34 |
455860-9 |
MOTOR HOUSING |
| 35 |
850X46-8 |
M8100 NAME PLATE |
| 36 |
141709-6 |
HANDLE COVER COMPLETE |
| 36 |
263002-9 |
RUBBER PIN 4 |
| 36 |
140427-3 |
HANDLE COVER COMPLETE |
| 36 |
263002-9 |
RUBBER PIN 4 |
| 37 |
266326-2 |
TAPPING SCREW 4X18 |
| 38 |
643566-3 |
BRUSH HOLDER 5X8 |
| 39 |
191998-3 |
CARBON BRUSH CB-85 |
| 40 |
645200-1 |
NOISE SUPPRESSOR |
| 41 |
650586-0 |
SWITCH DGQ-1104H |
| 42 |
266326-2 |
TAPPING SCREW 4X18 |
| 43 |
687124-5 |
STRAIN RELIEF |
| 44 |
682569-2 |
CORD GUARD 8-85 |
| 45 |
665383-1 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 45 |
695556-2 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 46 |
345280-4 |
HEX. WASHER |
|
321144-6 |
DEPTH GAUGE |
|
418163-2 |
KEY HOLDER 10 |
|
763441-8 |
CHUCK KEY S13 |
|
763235-1 |
CHUCK KEY S13 |
