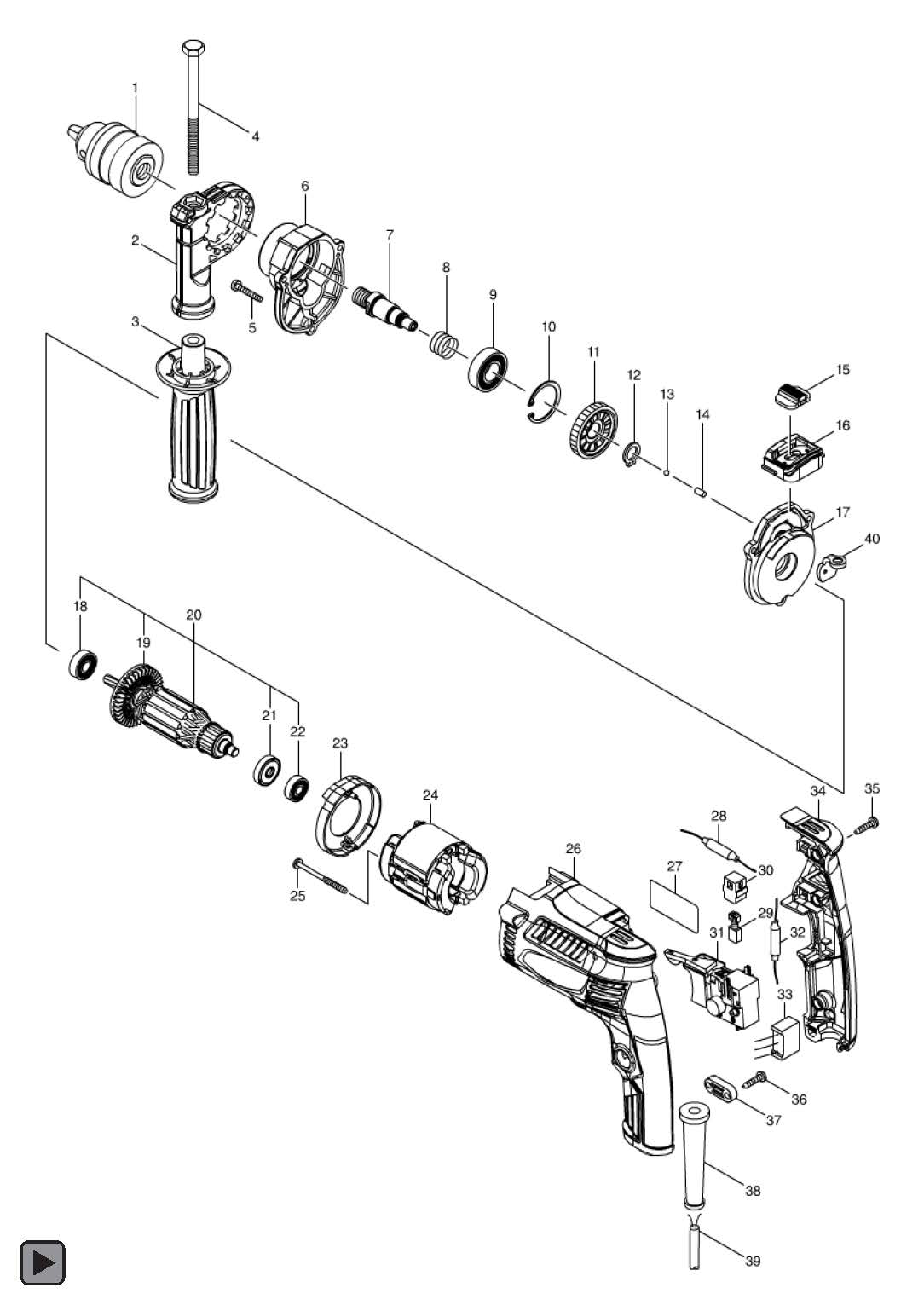

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
763161-4 |
DRILL CHUCK S13 |
| 1 |
763232-7 |
DRILL CHUCK S13 |
| 2 |
454126-4 |
GRIP BASE |
| 3 |
142083-5 |
GRIP 36 COMPLETE |
| 4 |
265495-6 |
HEX. BOLT M8X110 |
| 5 |
266374-1 |
TAPPING SCREW 4X25 |
| 6 |
454115-9 |
GEAR HOUSING |
| 7 |
326226-9 |
SPINDLE |
| 8 |
233330-6 |
COMPRESSION SPRING 16 |
| 9 |
211247-3 |
BALL BEARING 6002DDW |
| 9 |
211484-9 |
BALL BEARING 6002LLB |
| 10 |
962151-6 |
RETAINING RING R-32 |
| 11 |
227761-9 |
HELICAL GEAR 37 |
| 12 |
961052-5 |
RETAINING RING S-12 |
| 13 |
216001-0 |
STEEL BALL 3.5 |
| 14 |
256251-5 |
PIN 4 |
| 15 |
417819-4 |
CHANGE LEVER |
| 16 |
454116-7 |
LEVER CASE |
| 17 |
141899-5 |
CAM HOUSING COMPLETE |
| 17 |
141745-2 |
CAM COMPLETE |
| 18 |
210005-4 |
BALL BEARING 608DDW |
| 19 |
240055-5 |
FAN 48 |
| 20 |
515869-4 |
ARMATURE ASS'Y 240V |
|
|
INC. 18,19,21,22 |
| 21 |
681652-2 |
INSULATION WASHER |
| 22 |
210062-2 |
BALL BEARING 607ZZ |
| 22 |
211382-7 |
BALL BEARING 607ZZ |
| 23 |
456129-4 |
BAFFLE PLATE |
| 24 |
593803-4 |
FIELD ASS'Y 220-240V |
| 24 |
654228-8 |
RECEPTACLE |
| 25 |
266467-4 |
TAPPING SCREW 4X50 |
| 26 |
456506-0 |
MOTOR HOUSING |
| 27 |
852B10-3 |
M8103 NAME PLATE |
| 28 |
646148-0 |
CHOKE COIL |
| 29 |
191998-3 |
CARBON BRUSH CB-85 |
| 30 |
643566-3 |
BRUSH HOLDER 5X8 |
| 31 |
650555-1 |
SWITCH FA1-3/2BEZ-3 |
| 32 |
646147-2 |
CHOKE COIL |
| 33 |
645196-6 |
NOISE SUPPRESSOR |
| 34 |
454121-4 |
HANDLE COVER |
| 35 |
266326-2 |
TAPPING SCREW 4X18 |
| 36 |
266326-2 |
TAPPING SCREW 4X18 |
| 37 |
687124-5 |
STRAIN RELIEF |
| 38 |
682569-2 |
CORD GUARD 8-85 |
| 39 |
665383-1 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 39 |
695556-2 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 39 |
695556-2 |
POWER SUPPLY CORD 1.0-2-2.0 |
| 40 |
345836-3 |
CHANGE PLATE |
|
418163-2 |
KEY HOLDER 10 |
|
415486-9 |
DEPTH GAUGE |
|
763441-8 |
CHUCK KEY S13 |
|
418163-2 |
KEY HOLDER 10 |
|
763235-1 |
CHUCK KEY S13 |
|
415486-9 |
DEPTH GAUGE |
|
763441-8 |
CHUCK KEY S13 |
|
763235-1 |
CHUCK KEY S13 |
|
821665-3 |
PLASTIC CARRYING CASE |
|
452432-1 |
SLIDE LATCH |
|
806G57-9 |
MAKITA MT LOGO LABEL |
|
808W94-5 |
M8103K PLASTIC CASE LABEL |
