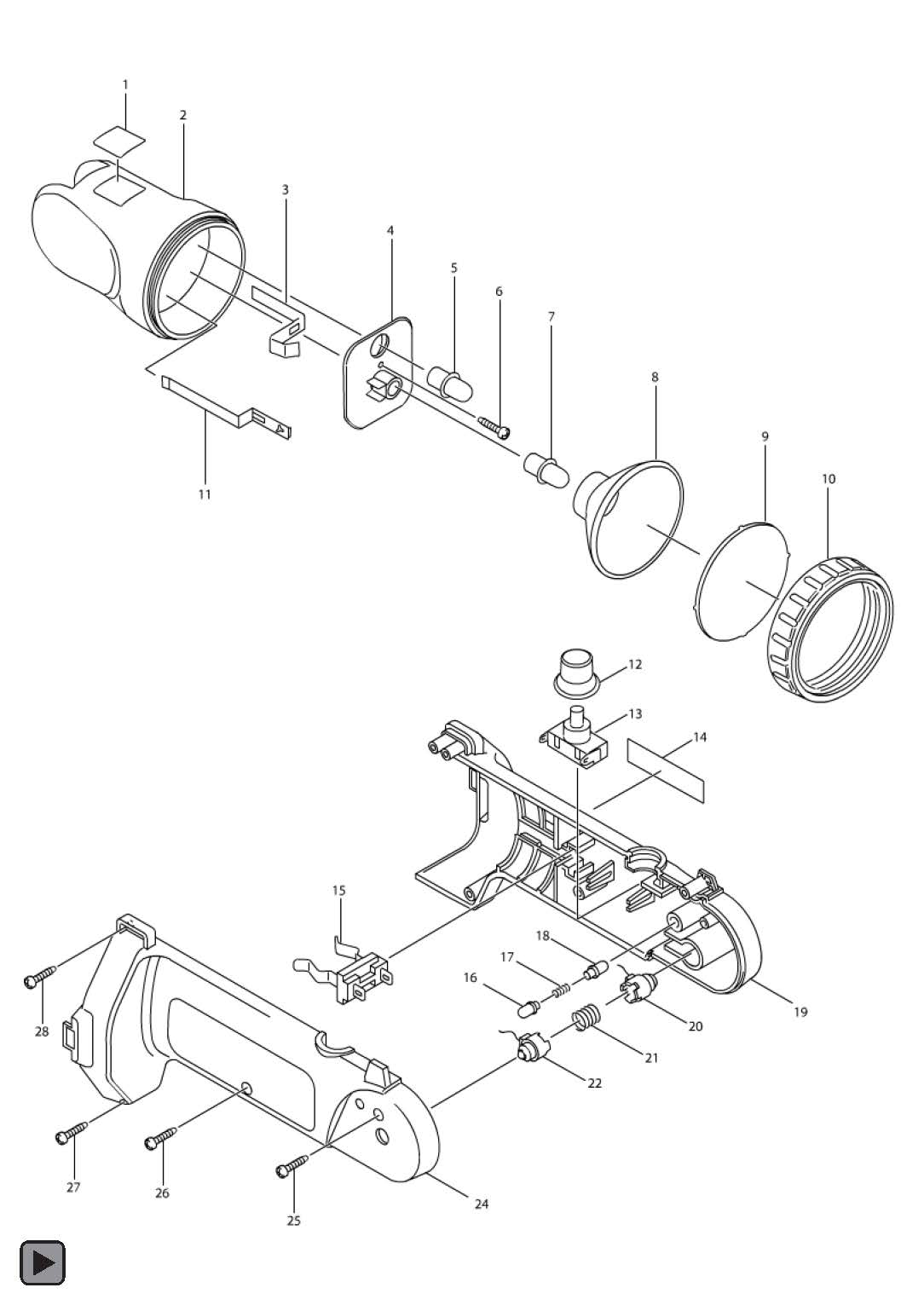

Rasklopna sema za Makita - ML120
| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
819088-7 |
MAKITA LABEL |
| 2 |
GM00000020 |
HEAD |
| 3 |
GM00000110 |
BULB CONTACT PLATE (+) |
| 4 |
GM00000080 |
PROTECTOR FOR CONTACT |
| 5 |
A-90233 |
BULB SET |
| 6 |
GM00000150 |
SCREW 3X12 |
| 7 |
A-90233 |
BULB SET |
| 8 |
GM00000130 |
REFLECTOR |
| 9 |
GM00000070 |
LENS |
| 10 |
GM00000010 |
REFLECTOR RETAINER |
| 11 |
GM00000120 |
BULB CONTACT PLATE (-) |
| 12 |
421540-9 |
COVER C9010901009 |
| 13 |
651709-3 |
SWITCH DPC-1111-02 |
| 14 |
859519-4 |
NAME PLATE ML120 |
| 15 |
643926-9 |
BATTERY HOLDER |
| 16 |
415811-4 |
KNOCK SHAFT |
| 17 |
GM00000090 |
COMPRESSION SPRING 4 |
| 18 |
415811-4 |
KNOCK SHAFT |
| 19 |
GM00000040 |
HOUSING L |
| 20 |
632523-6 |
PIVOT TERMINAL UNIT L |
| 21 |
GM00000100 |
COMPRESSION SPRING 7 |
| 22 |
632524-4 |
PIVOT TERMINAL UNIT R |
| 24 |
GM00000030 |
HOUSING R |
| 25 |
265869-1 |
+ TAPPING SCREW 3X14 |
| 26 |
265869-1 |
+ TAPPING SCREW 3X14 |
| 27 |
265869-1 |
+ TAPPING SCREW 3X14 |
| 28 |
265869-1 |
+ TAPPING SCREW 3X14 |
|
415812-2 |
HOOK BUTTON |
|
345261-8 |
HOOK PLATE |
|
415813-0 |
STRAP |
|
417926-3 |
STRAP G0970200500 |
|
343579-1 |
SET PLATE |
