| Broj dela |
Šifra dela |
Naziv dela |

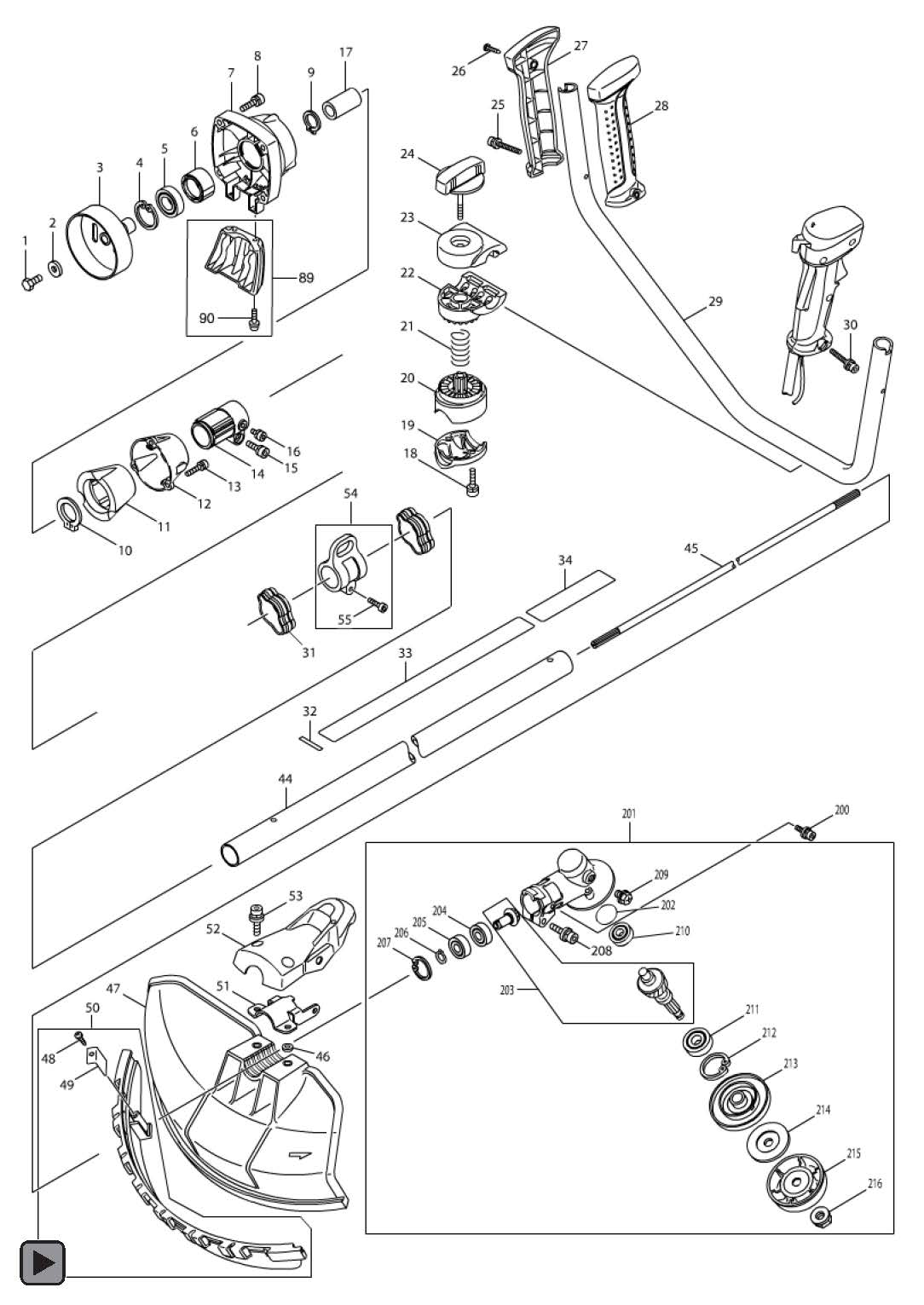

| 1 |
266598-9 |
HEX. HEAD BOLT M6X14 |
| 1 |
251527-5 |
HEX. HEAD BOLT M6X14 |
| 2 |
267429-5 |
FLAT WASHER 6 |
| 3 |
141689-6 |
CLUTCH DRUM COMPLETE |
| 4 |
962153-2 |
RETAINING RING R-35 |
| 5 |
210126-2 |
BALL BEARING 6003LLU |
| 6 |
451157-4 |
SPACER |
| 7 |
318421-5 |
CLUTCH CASE |
| 8 |
922331-6 |
HEX. SOCKET HEAD BOLT M6X20 |
| 9 |
961057-5 |
RETAINING RING S-17 |
| 10 |
961151-3 |
RETAINING RING S-32 |
| 11 |
424204-4 |
DAMPER |
| 12 |
318453-2 |
PIPE RETAINER |
| 13 |
922231-0 |
HEX. SOCKET HEAD BOLT M5X20 |
| 14 |
318454-0 |
PIPE BRACKET |
| 15 |
922331-6 |
HEX. SOCKET HEAD BOLT M6X20 |
| 16 |
922201-9 |
HEX. SOCKET HEAD BOLT M5X8 |
| 17 |
424403-8 |
DAMPER |
| 18 |
922341-3 |
HEX. SOCKET HEAD BOLT M6X25 |
| 19 |
318422-3 |
PIPE CLAMP |
| 20 |
318423-1 |
PIPE HOLDER |
| 21 |
233202-5 |
COMPRESSION SPRING 20 |
| 22 |
318424-9 |
HANDLE HOLDER |
| 23 |
318425-7 |
HANDLE CLAMP |
| 24 |
168796-0 |
KNOB 57 |
| 25 |
922256-4 |
HEX. SOCKET HEAD BOLT M5X35 |
| 26 |
266326-2 |
TAPPING SCREW 4X18 |
| 27 |
188660-9 |
GRIP SET |
|
|
INC. 28 |
| 28 |
188660-9 |
GRIP SET |
|
|
INC. 27 |
| 29 |
331863-6 |
HANDLE 22 |
| 30 |
922256-4 |
HEX. SOCKET HEAD BOLT M5X35 |
| 31 |
451525-1 |
WIRE CLAMP |
| 31 |
451160-5 |
WIRE CLAMP |
| 31 |
455588-9 |
WIRE CLAMP |
| 32 |
801D19-4 |
SERIAL NO. LABEL |
| 34 |
819312-8 |
MAKITA LOGO LABEL |
| 44 |
142678-4 |
SHAFT PIPE COMPLETE |
| 44 |
803S36-0 |
CAUTION LABEL |
| 45 |
142144-1 |
SHAFT COMPLETE |
| 46 |
413143-3 |
WASHER |
| 47 |
452259-9 |
PROTECTOR |
| 48 |
266326-2 |
TAPPING SCREW 4X18 |
| 49 |
346074-0 |
CUTTER |
| 50 |
135398-7 |
PROTECTOR EXTENSION ASSY |
|
|
INC. 48,49 |
| 51 |
346072-4 |
PROTECTOR CLAMP |
| 52 |
451090-0 |
PROTECTOR COVER |
| 53 |
266579-3 |
HEX SOCKET HEAD BOLT M6X30 |
| 54 |
125558-9 |
HANGER ASSEMBLY |
|
|
INC. 55 |
| 55 |
922232-8 |
HEX. SOCKET HEAD BOLT M5X20 |
| 56 |
266595-5 |
HEX. HEAD BOLT M5X14 |
| 58 |
168586-1 |
FUEL TANK BRACKET ASSEMBLY |
| 58 |
455434-6 |
FUEL TANK BRACKET |
| 59 |
424335-9 |
BRACKET DAMPER |
| 59 |
424660-8 |
BRACKET DAMPER |
| 60 |
266894-5 |
SHOULDER HEX. BOLT M8 |
| 60 |
251523-3 |
SHOULDER HEX. BOLT M8 |
| 61 |
267849-3 |
WAVE WASHER 10 |
| 61 |
253385-5 |

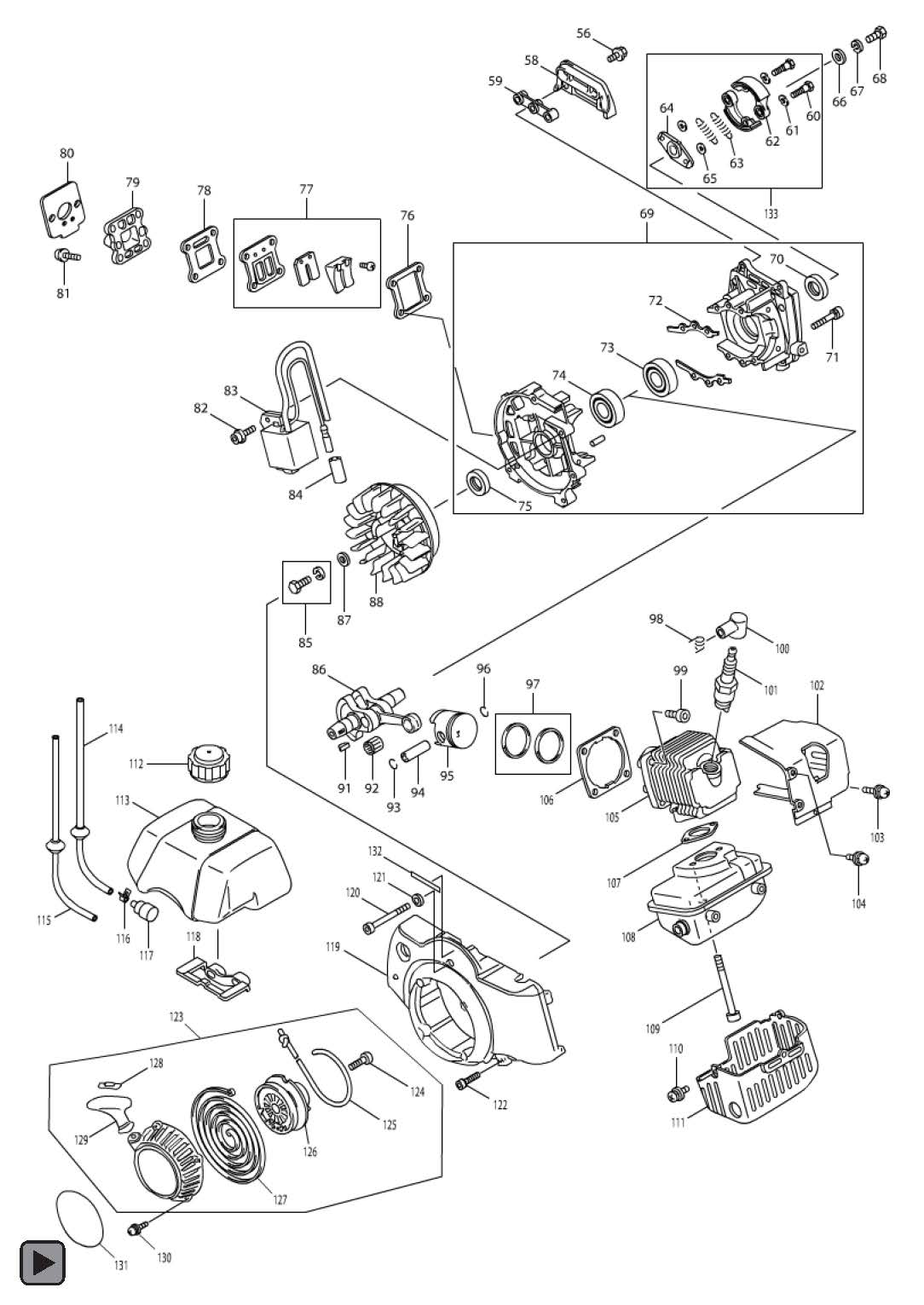

WAVE WASHER 10 |
| 62 |
168622-3 |
CLUTCH SHOE |
| 62 |
161465-2 |
CLUTCH SHOE |
| 63 |
231869-3 |
SPRING |
| 63 |
AN23010C00 |
SPRING |
| 64 |
313197-9 |
HOLDER |
| 64 |
310774-8 |
HOLDER |
| 65 |
267428-7 |
FLAT WASHER 8 |
| 65 |
253384-7 |
FLAT WASHER 8 |
| 66 |
267429-5 |
FLAT WASHER 6 |
| 67 |
942151-2 |
SPRING WASHER 6 |
| 68 |
266598-9 |
HEX. HEAD BOLT M6X14 |
| 68 |
251527-5 |
HEX. HEAD BOLT M6X14 |
| 69 |
135558-1 |
CRANKCASE ASSEMBLY |
|
|
INC. 70-75 |
| 70 |
213546-9 |
OIL SEAL 15 |
| 71 |
922251-4 |
HEX. SOCKET HEAD BOLT M5X30 |
| 72 |
442157-5 |
CRANKCASE GASKET |
| 73 |
211483-1 |
BALL BEARING 6202 |
| 74 |
211483-1 |
BALL BEARING 6202 |
| 75 |
213546-9 |
OIL SEAL 15 |
| 76 |
442160-6 |
LEAD VALVE GASKET |
| 77 |
126211-0 |
LEAD VALVE ASSEMBLY |
| 78 |
442189-2 |
INSULATOR GASKET |
| 79 |
453971-4 |
INSULATOR |
| 80 |
442190-7 |
CARBURETOR GASKET |
| 81 |
266793-1 |
HEX. S.H.B. M5X25 WITH WR |
| 82 |
922236-0 |
HEX. SOCKET HEAD BOLT M5X22 |
| 83 |
168587-9 |
IGNITION COIL |
| 84 |
422059-1 |
TUBE |
| 85 |
266596-3 |
HEX. HEAD BOLT M6X16 WITH W |
| 86 |
142159-8 |
CRANKSHAFT COMPLETE |
| 87 |
267427-9 |
FLAT WASHER 7 |
| 88 |
318632-2 |
FLYWHEEL |
| 89 |
195144-0 |
STAND SET |
|
|
INC. 90 |
| 90 |
911218-7 |
PAN HEAD SCREW M5X14 |
| 91 |
254040-2 |
WOODRUFF KEY 3 |
| 92 |
212085-6 |
NEEDLE CAGE1014 |
| 93 |
233983-1 |
CLIP |
| 94 |
257797-4 |
PISTON PIN |
| 95 |
318631-4 |
PISTON |
| 96 |
233983-1 |
CLIP |
| 97 |
257309-3 |
PISTON RING |
| 98 |
324891-8 |
PLUG CAP SPRING |
| 99 |
922327-7 |
HEX. SOCKET HEAD BOLT M6X18 |
| 100 |
125936-3 |
CAP COVER ASSEMBLY |
| 100 |
213595-6 |
O RING 14 |
| 100 |
424412-7 |
PLUG CAP |
| 101 |
168648-5 |
SPARK PLUG (BPMR7A) |
| 102 |
452003-4 |
CYLINDER COVER |
| 103 |
911233-1 |
PAN HEAD SCREW M5X20 |
| 103 |
0140059330 |
SCREW M5X20(W,SW) |
| 103 |
265A08-9 |
PAN HEAD SCREW M5X20 |
| 104 |
911218-7 |
PAN HEAD SCREW M5X14 |
| 104 |
266677-3 |
PAN HEAD SCREW M5X14 |
| 105 |
318630-6 |
CYLINDER |
| 106 |
442156-7 |
CYLINDER GASKET |
| 107 |
168584-5 |
MUFFLER GASKET |
| 108 |
168589-5 |
EXHAUST MUFFLER |
| 108 |
161573-9 |
MUFFLER |
| 109 |
266589-0 |
HEX. SOCKET HEAD BOLT M6X60 |
| 110 |
911218-7 |
PAN HEAD SCREW M5X14 |
| 110 |
266677-3 |
PAN HEAD SCREW M5X14 |
| 111 |
451998-8 |
MUFFLER COVER |
| 112 |
168668-9 |
FUEL TANK CAP COMPLETE |
| 113 |
454559-3 |
FUEL TANK |
| 114 |
168765-1 |
TUBE COMPLETE |
| 115 |
168766-9 |
TUBE COMPLETE |
| 116 |
345920-4 |
HOSE CLAMP |
| 117 |
163447-0 |
FUEL FILTERLTER |
| 117 |
163447-0 |
FUEL FILTERLTER |
| 118 |
424336-7 |
FUEL TANK DAMPER |
| 119 |
452002-6 |
BLOWER HOUSING |
| 120 |
266592-1 |
HEX. SOCKET HEAD BOLT M5X50 |
| 121 |
941102-2 |
FLAT WASHER 5 |
| 122 |
922236-0 |
HEX. SOCKET HEAD BOLT M5X22 |
| 123 |
126364-5 |
RECOIL STARTER ASSEMBLY |
|
|
INC. 124-129 |
| 124 |
266634-1 |
SET SCREW M6X20 |
| 125 |
SG00000019 |
STARTER ROPE |
| 126 |
452288-2 |
REEL |
| 127 |
SG00000018 |
SPIRAL SPRING |
| 128 |
424360-0 |
ROPE STOPPER |
| 129 |
424361-8 |
STARTER KNOB |
| 130 |
911218-7 |
PAN HEAD SCREW M5X14 |
| 131 |
803S10-8 |
RBC414U MODEL NO. LABEL |
| 132 |
819967-9 |
SERIAL NO. LABEL |
| 133 |
125829-4 |
CLUTCH ASSEMBLY |
|
|
INC. 60-65 |
| 133 |
123885-8 |
CLUTCH ASSEMBLY |
|
|
INC. 60-65 |

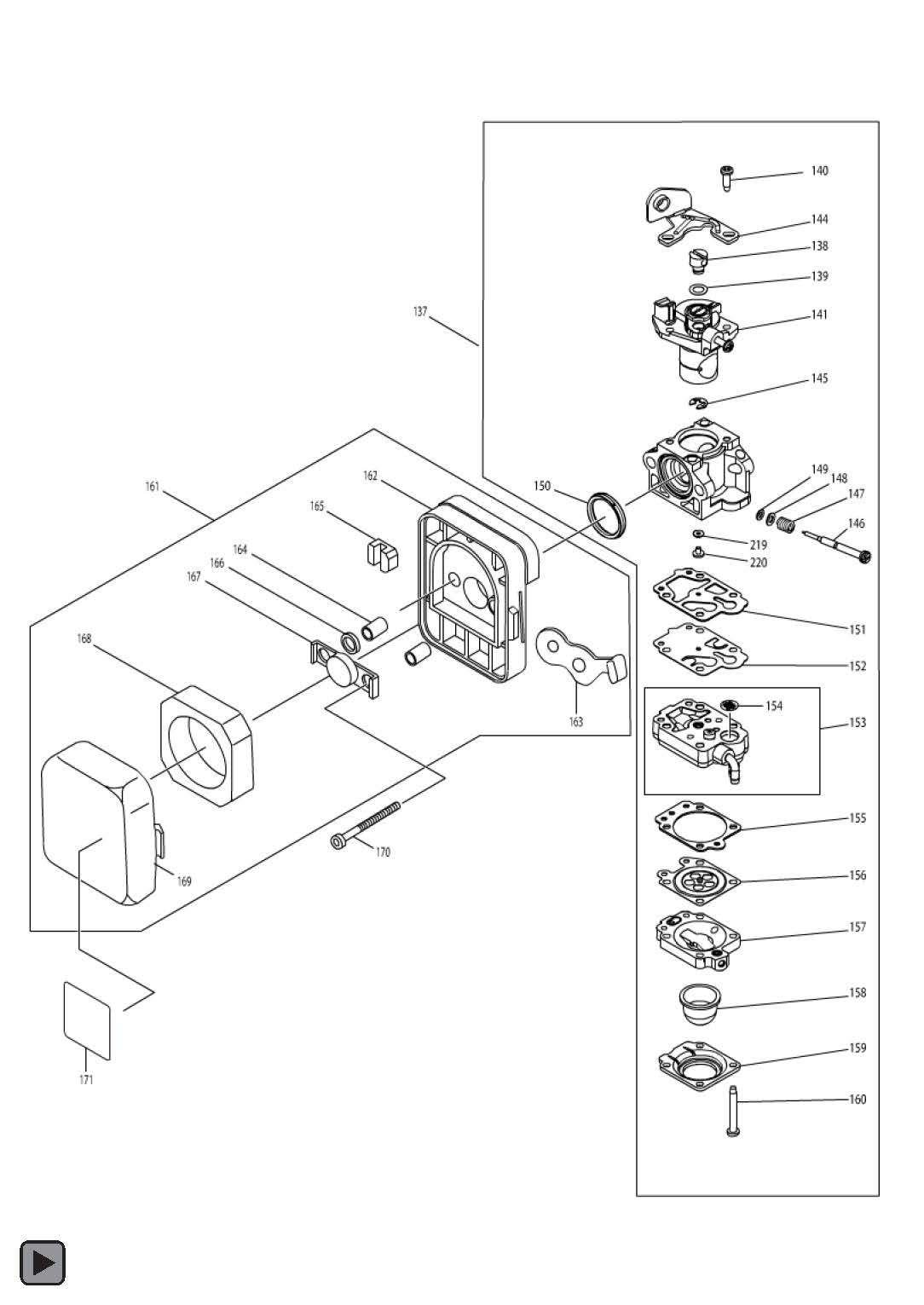

| 137 |
168874-6 |
CABURETOR |
|
|
INC. 138-145,150-153,155-160 |
|
|
INC. 219,220 |
| 138 |
325922-6 |
SWIVEL |
| 139 |
413140-9 |
WASHER |
| 140 |
266704-6 |
PAN HEAD SCREW M3X10 |
| 141 |
453970-6 |
THROTTLE VALVE |
| 144 |
346491-4 |
BRACKET CABLE |
| 145 |
257964-1 |
STOP RING E-3 |
| 150 |
424444-4 |
PACKING RING |
| 151 |
442172-9 |
PUMP GASKET |
| 152 |
168575-6 |
PUMP DIAPHRAGM |
| 152 |
WJ00009599 |
PUMP DIAPHRAGM |
| 153 |
140989-1 |
PUMP BODY ASSEMBLY |
|
|
INC. 154 |
| 154 |
352010-6 |
INLET SCREEN |
| 154 |
WJ00014070 |
INLET SCREEN |
| 155 |
442154-1 |
METERING DIAPHRAGM GASKET |
| 156 |
168767-7 |
METALING DIAPHRAGM |
| 157 |
140988-3 |
AIR PURGE BODY ASSEMBLY |
| 158 |
424314-7 |
PRIMER PUMP |
| 159 |
346270-0 |
PRIMER PUMP COVER |
| 160 |
266582-4 |
TAPPING SCREW 3X24 |
| 161 |
126212-8 |
AIR CLEANER ASSEMBLY |
|
|
INC. 162-169 |
| 162 |
453981-1 |
AIR CLEANER HOUSING |
| 163 |
346627-5 |
CHOKE VALVE |
| 164 |
332044-5 |
SLEEVE |
| 165 |
453983-7 |
CLEANER COVER CLIP |
| 166 |
424523-8 |
WASHER |
| 167 |
346626-7 |
PLATE |
| 168 |
443180-3 |
AIR FILTER |
| 169 |
453982-9 |
AIR CLEANER COVER |
| 170 |
266794-9 |
HEX. SOCKET HEAD BOLT M5X50 |
| 171 |
800G01-8 |
INDICATION LABEL |

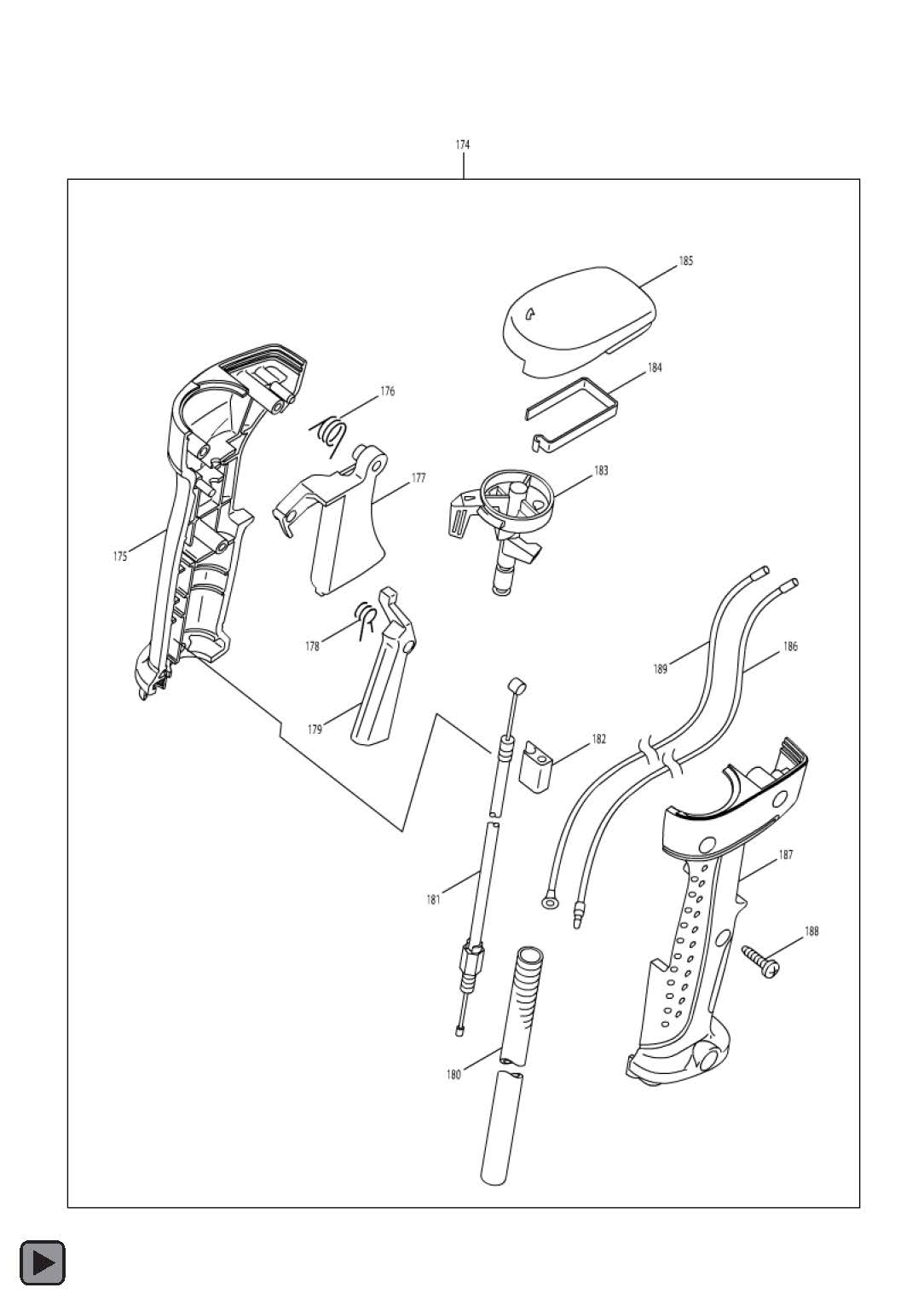

| 174 |
126447-1 |
CONTLROL LEVER ASSEMBLY |
|
|
INC. 175-189 |
| 175 |
188657-8 |
LEVER CASE SET |
|
|
INC. 187 |
| 175 |
183A09-4 |
LEVER CASE SET |
|
|
INC. 187 |
| 176 |
233540-5 |
TORSION SPRING 11 |
| 177 |
451084-5 |
THROTTLE LEVER |
| 178 |
233541-3 |
TORSION SPRING 7 |
| 179 |
451083-7 |
LOCK OFF LEVER |
| 180 |
451213-0 |
CORRUGATE TUBE |
| 181 |
168846-1 |
CONTROLL CABLE |
| 182 |
451081-1 |
CABLE HOLDER |
| 183 |
451500-7 |
SWITCH LEVER |
| 184 |
232251-9 |
LEAF SPRING |
| 185 |
451253-8 |
SWITCH COVER |
| 185 |
455723-9 |
SWITCH COVER |
| 186 |
632A46-0 |
LEAD UNIT |
| 187 |
188657-8 |
LEVER CASE SET |
|
|
INC. 175 |
| 187 |
183A09-4 |
LEVER CASE SET |
|
|
INC. 175 |
| 188 |
266326-2 |
TAPPING SCREW 4X18 |
| 189 |
632A47-8 |
LEAD UNIT |
| 200 |
922218-2 |
H.S.H.BOLT M5X14 WITH WR |
| 201 |
126310-8 |
GEAR CASE ASSEMBLY |
|
|
INC. 202-216 |
| 202 |
213459-4 |
O RING 32 |
| 203 |
187644-4 |
CUTTER SHAFT SET |
| 204 |
211064-1 |
BALL BEARING 6000 |
| 205 |
211062-5 |
BALL BEARING 6000ZZ |
| 206 |
961006-2 |
RETAINING RING S-10 |
| 207 |
962105-3 |
RETAINING RING R-26 |
| 208 |
922353-6 |
HEX.SOCKET HEAD BOLT M6X30 |
| 209 |
265590-2 |
+HEX.BOLT M8X10 WITH R |
| 210 |
210081-8 |
BALL BEARING 629ZZ |
| 211 |
210116-5 |
BALL BEARING 6201LLU |
| 212 |
962151-6 |
RETAINING RING R-32 |
| 213 |
332114-0 |
RECEIVE WASHER |
| 214 |
346355-2 |
CLAMP WASHER |
| 215 |
168526-9 |
CUP |
| 216 |
264025-0 |
HEX. NUT M10-17 |
| 218 |
804K21-8 |
MAKITA LOGO LABEL |
| 219 |
WJ00016104 |
O RING |
| 220 |
5416046010 |
JET #50 |
|
122906-3 |
BAND ASSY |
|
140400-3 |
HOOK COMPLETE |
|
122882-1 |
CUTTER ASSEMBLY |
|
782235-2 |
WRENCH 17-19 |
|
782238-6 |
BOX WRENCH 17 |
|
783223-2 |
HEX. WRENCH 4 |
|
783232-1 |
HEX. WRENCH 5 |
|
831304-7 |
ACCESSORY BAG |
|
450573-7 |
TOOL COVER |
|
456924-2 |
TOOL COVER |
|
B-14124 |
STAR BLADE 255X4TX25.4 |
|
195246-2 |
SAFETY GOGGLE |
