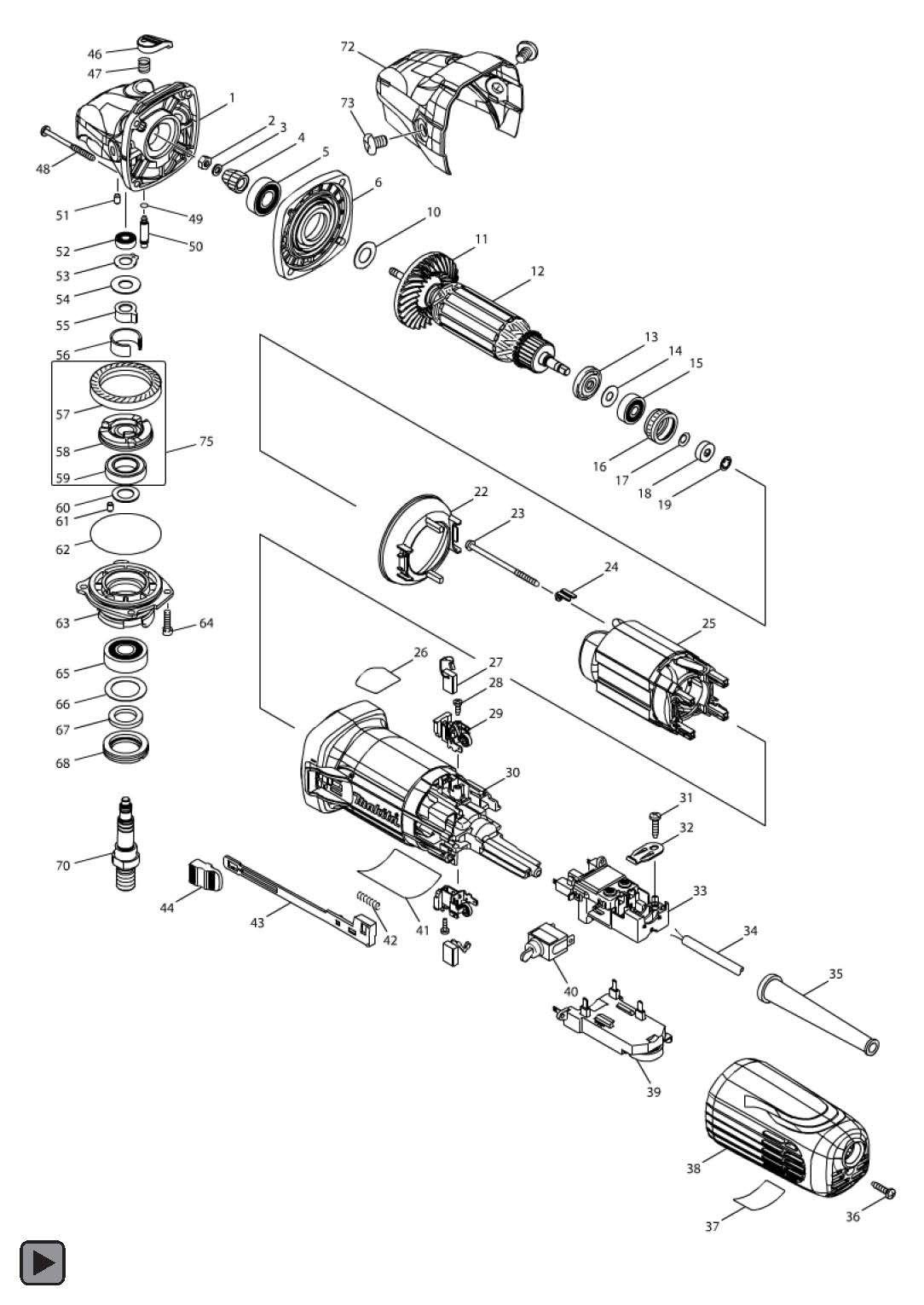

| Broj dela | Šifra dela | Naziv dela |
|---|---|---|
| 1 | 168705-9 | GEAR HOUSING COMPLETE |
| 1 | 319310-7 | GEAR HOUSING |
| 2 | 252137-1 | HEX. NUT M5-8 |
| 3 | 267034-8 | FLAT WASHER 5 |
| 4 | 227595-0 | SPIRAL BEVEL GEAR 7 |
| 5 | 211142-7 | BALL BEARING 6001LLB |
| 6 | 318835-8 | GEAR HOUSING COVER |
| 6 | 141981-0 | GEAR HOUSING COVER COMPLETE |
| 10 | 253084-9 | FLAT WASHER 12 |
| 11 | 240134-9 | FAN 60 |
| 12 | 515383-0 | ARMATURE ASS'Y 220-240V |
| INC. 11,13-15 | ||
| 13 | 681656-4 | INSULATION WASHER |
| 14 | 253823-7 | FLAT WASHER 7 |
| 15 | 210027-4 | BALL BEARING 627DDW |
| 16 | 421738-8 | LABYRINTH RUBBER RING 22 |
| 17 | 267756-0 | WAVE WASHER 6 |
| 18 | 688117-5 | MAGNET SLEEVE |
| 19 | 259039-2 | SELF LOCK 6 |
| 22 | 453367-9 | BUFFLE PLATE |
| 23 | 266258-3 | TAPPING SCREW 4X70 |
| 24 | 344871-8 | RETAINER |
| 25 | 626653-3 | FIELD 220-240V |
| 26 | 898443-6 | SJS2 MARK LABEL |
| 27 | 191978-9 | A.C. CARBON BRUSH CB-318 |
| 28 | 266007-8 | TAPPING SCREW BIND PT 3X10 |
| 29 | 643769-9 | BRUSH HOLDER |
| 29 | 643770-4 | BRUSH HOLDER |
| 30 | 453366-1 | MOTOR HOUSING |
| 31 | 266326-2 | TAPPING SCREW 4X18 |
| 32 | 687169-3 | STRAIN RELIEF |
| 33 | 638947-4 | SWITCH BLOCK |
| 34 | 695034-2 | POWER SUPPLY CORD 1.0-2-4.0 |
| 35 | 682559-5 | CORD GUARD 8 |
| 36 | 266326-2 | TAPPING SCREW 4X18 |
| 37 | 898446-0 | INDICATION LABEL |
| 38 | 453365-3 | REAR COVER C |
| 39 | 620127-6 | CONTROLLER |
| 40 | 651418-4 | SWITCH ST115A-40 |
| 41 | 897116-8 | SA5040C NAME PLATE |
| 41 | 897116-8 | SA5040C NAME PLATE |
| 42 | 233071-4 | COMPRESSION SPRING 4 |
| 43 | 453847-5 | SWITCH LEVER |
| 44 | 453368-7 | SWITCH KNOB |
| 46 | 453369-5 | PIN CAP |
| 47 | 234057-1 | COMPRESSION SPRING 8 |
| 48 | 266361-0 | TAPPING SCREW 4X30 |
| 49 | 213032-0 | O RING 4 |
| 50 | 256535-1 | SHOULDER PIN 6 |
| 51 | 263002-9 | RUBBER PIN 4 |
| 52 | 210006-2 | BALL BEARING 696ZZ |
| 53 | 961005-4 | RETAINING RING S-9 |
| 54 | 253180-3 | FLAT WASHER 10 |
| 55 | 310508-9 | JOINT SLEEVE |
| 55 | 310577-0 | JOINT SLEEVE |
| 55 | 310683-1 | JOINT SLEEVE |
| 56 | 346556-2 | C TYPE PLATE |
| 57 | 227596-8 | SPIRAL BEVEL GEAR 37 |
| 58 | 313228-4 | COUPLING |
| 59 | 210302-8 | BALL BEARING 6903ZZ |
| 60 | 253744-3 | FLAT WASHER 12 |
| 61 | 263002-9 | RUBBER PIN 4 |
| 62 | 213641-5 | O RING 51 |
| 63 | 318837-4 | BEARING BOX |
| 64 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 |
| 65 | 211129-9 | BALL BEARING 6201DDW |
| 66 | 267279-8 | FLAT WASHER 21 |
| 67 | 443124-3 | FELT RING 17 |
| 68 | 285854-8 | BEARING RETAINER 20-33 |
| 70 | 326130-2 | SPINDLE |
| 72 | 453378-4 | HEAD COVER |
| 73 | 265083-9 | + FLAT HEAD SCREW M8X11 |
| 75 | 135559-9 | COUPLING ASS'Y |
| INC. 57-59 | ||
| 76 | 804Y42-4 | CLEAR LABEL |
| 153489-2 | GRIP 36 COMPLETE | |
| 743060-6 | PAD 125 |
