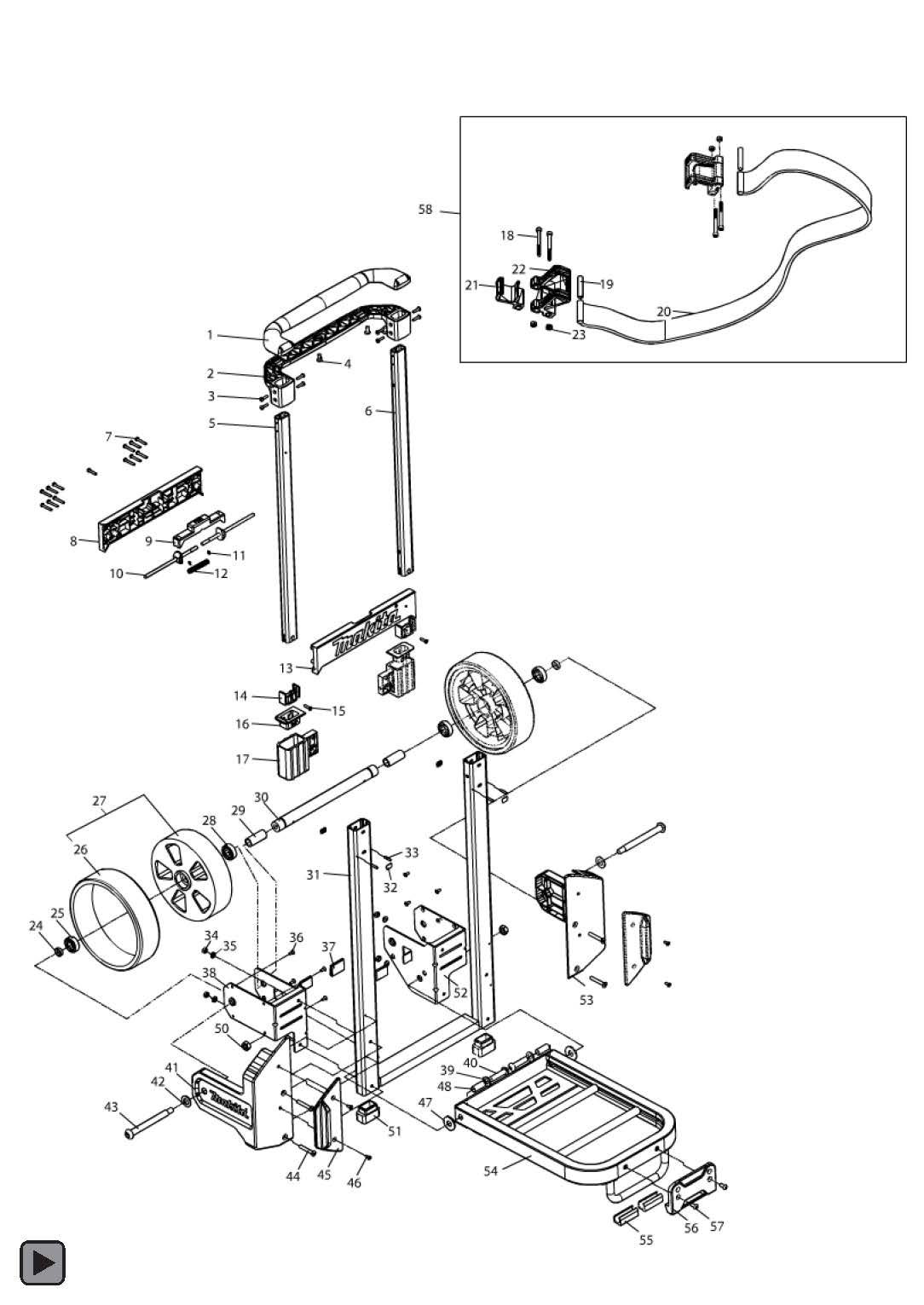

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
TR00000049 |
HANDLE UPPER PART |
| 2 |
TR00000047 |
HANDLE LOWER PART |
| 3 |
TR00000046 |
HEXAGON SOCKET SCREW M4X10 |
| 4 |
TR00000048 |
SELF-TAPPING SCREW ST6.3X25 |
| 5 |
TR00000050 |
ON THE ROD R |
| 6 |
TR00000045 |
ON THE ROD L |
| 7 |
TR00000008 |
ST4.2X25 SELF-TAPPING SCREW |
| 8 |
TR00000007 |
LOWER HANDLE 2 |
| 9 |
TR00000005 |
PRESS BLOCK |
| 10 |
TR00000006 |
THE ROCK ROD |
| 11 |
TR00000003 |
E-TYPE CLAMP SPRING |
| 12 |
TR00000004 |
SPRING 2 |
| 13 |
TR00000040 |
LOWER HANDLE 1 |
| 14 |
TR00000044 |
UPPER LIFTING ROD END CAP |
| 15 |
TR00000043 |
HEXAGON SOCKET SCREW M4X16 |
| 16 |
TR00000042 |
LOWER BUSHING |
| 17 |
TR00000041 |
CONNECTING BLOCK |
| 18 |
TR00000053 |
HEXAGON SOCKET SCREW M6X60 |
| 19 |
TR00000056 |
PLASTIC TUBE |
| 20 |
TR00000055 |
ELASTIC BAND |
| 21 |
TR00000052 |
ELASTIC BAND CONNECTION 2 |
| 22 |
TR00000051 |
ELASTIC BAND CONNECTION 1 |
| 23 |
TR00000054 |
M6 ANTI-LOOSE NUT |
| 24 |
TR00000018 |
SHORT SHAFT SLEEVE |
| 25 |
TR00000017 |
6201 BEARING |
| 26 |
TR00000016 |
RUBBER HOUSING |
| 27 |
TR00000015 |
WHEEL ASSY |
|
|
INC. 26 |
| 28 |
TR00000017 |
6201 BEARING |
| 29 |
TR00000014 |
LONG SHAFT SLEEVE |
| 30 |
TR00000009 |
WHEEL SHAFT ASSEMBLY |
| 31 |
TR00000039 |
LOWER LIFTING ROD WELDING |
| 32 |
TR00000038 |
PLASTIC BLOCK |
| 33 |
TR00000037 |
SET SCREW M4X20 |
| 34 |
TR00000012 |
M6 ANTI-LOOSE NUT |
| 35 |
TR00000011 |
M6 WASHER |
| 36 |
TR00000057 |
SELF-TAPPING SCREW ST4.2X9.5 |
| 37 |
TR00000010 |
PROTECTIVE COVER |
| 38 |
TR00000013 |
REINFORCING PLATE R |
| 39 |
TR00000025 |
M10 WASHER |
| 40 |
TR00000019 |
HEXAGON SOCKET M10X45 |
| 41 |
TR00000021 |
BOTTOM SUPPORT(R) |
| 42 |
TR00000020 |
WASHER |
| 43 |
TR00000035 |
HEXAGON SOCKET SCREW M10X120 |
| 44 |
TR00000023 |
HEXAGON SOCKET BOLT M6X40 |
| 45 |
TR00000033 |
SIDE BAFFLE |
| 46 |
TR00000024 |
HEXAGON SOCKET SCREW M4X10 |
| 47 |
TR00000032 |
ANTI-LOOSE WASHER |
| 48 |
TR00000031 |
BUSHING |
| 50 |
TR00000026 |
M10 ANTI-LOOSE NUT |
| 51 |
TR00000022 |
FOOT-PAD |
| 52 |
TR00000036 |
REINFORCING PLATE L |
| 53 |
TR00000034 |
BOTTOM SUPPORT(L) |
| 54 |
TR00000030 |
WELDING COMPONENTS |
| 55 |
TR00000027 |
NON-SLIP SLEEVE |
| 56 |
TR00000029 |
FRONT BAFFLE |
| 57 |
TR00000028 |
HEXAGON SOCKET SCREW M6X12 |
| 58 |
TR00000064 |
BELT ASSY |
|
TR00000062 |
ATTENTION LABEL(FOR EUROPE) |
