| Broj dela |
Šifra dela |
Naziv dela |

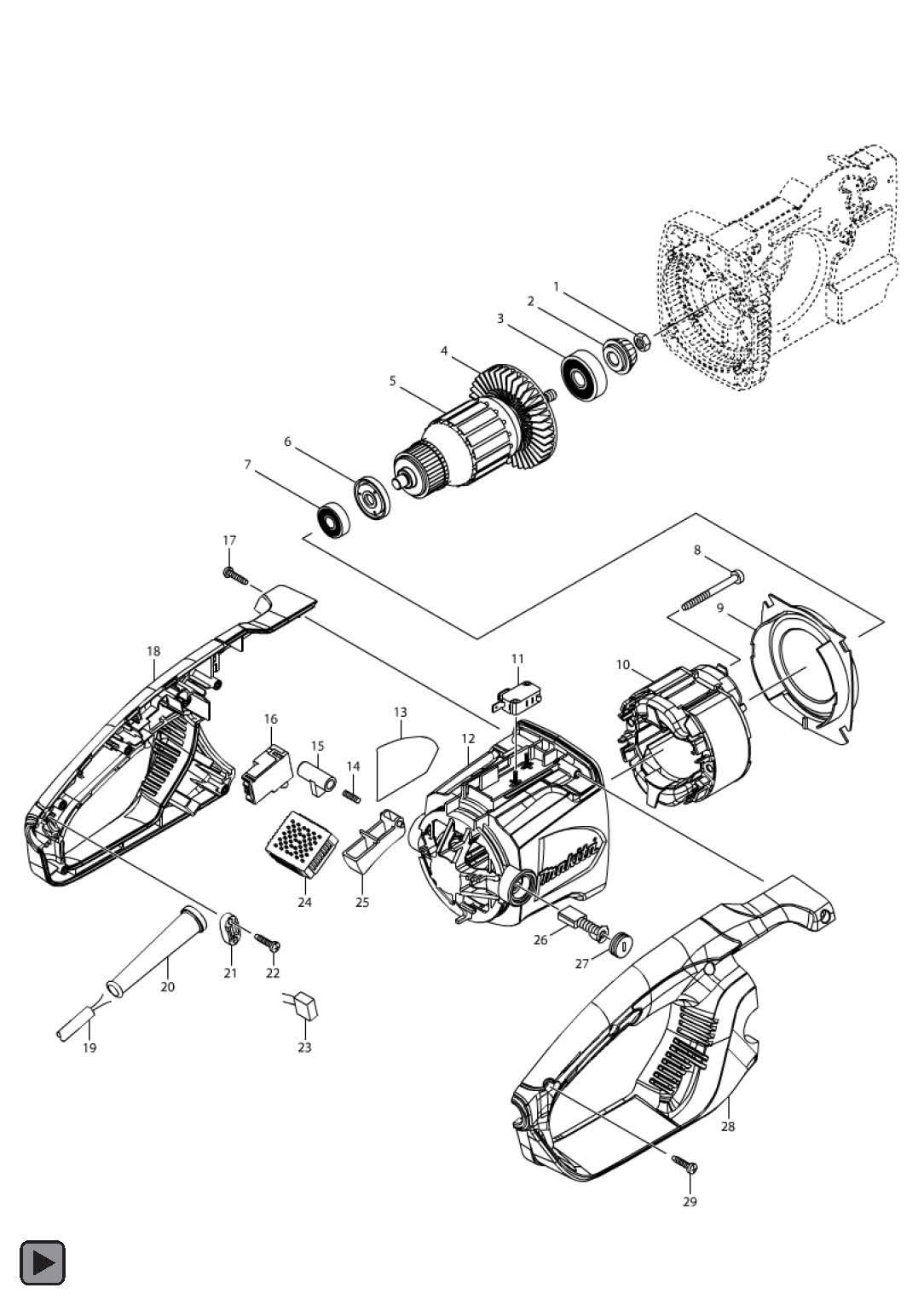

| 1 |
931403-6 |
HEX. NUT M8 |
| 2 |
227626-5 |
SPIRAL BEVEL GEAR 12 |
| 3 |
211111-8 |
BALL BEARING 6301LLB |
| 4 |
240003-4 |
FAN 80 |
| 5 |
517904-4 |
ARMATURE ASS'Y 240V |
|
|
INC. 3,4,6,7 |
| 6 |
681666-1 |
INSULATION WASHER |
| 7 |
210084-2 |
BALL BEARING 629ZZ |
| 8 |
266095-5 |
TAPPING SCREW 5X55 |
| 9 |
419410-4 |
BAFFLE PLATE |
| 10 |
636394-3 |
FIELD 240V |
| 11 |
650577-1 |
SWITCH SD-006-BB2AA-AA |
| 12 |
142348-5 |
MOTOR HOUSING COMPLETE |
| 12 |
643653-8 |
BRUSH HOLDER 6.5-13.5 |
| 13 |
815G07-3 |
UC4051A NAME PLATE |
| 14 |
233173-6 |
COMPRESSION SPRING 4 |
| 15 |
416178-3 |
LOCK-OFF BUTTON |
| 16 |
650717-1 |
SWITCH TGC30B |
| 17 |
265995-6 |
TAPPING SCREW 4X18 |
| 18 |
187901-0 |
HANDLE SET |
| 18 |
802G51-9 |
CAUTION LABEL |
|
|
INC. 28 |
| 19 |
665894-6 |
POWER SUPPLY CORD 1.0-2-0.5 |
| 20 |
682540-6 |
CORD GUARD 9.3-90 |
| 21 |
687124-5 |
STRAIN RELIEF |
| 22 |
265995-6 |
TAPPING SCREW 4X18 |
| 23 |
645105-5 |
NOISE SUPPRESSOR |
| 24 |
631719-6 |
CONTROLLER |
| 25 |
419411-2 |
SWITCH LEVER |
| 26 |
181044-0 |
CARBON BRUSH CB-153 |
| 27 |
643650-4 |
BRUSH HOLDER CAP 6.5-13.5 |
| 27 |
643650-4 |
BRUSH HOLDER CAP 6.5-13.5 |
| 28 |
187901-0 |
HANDLE SET |
| 28 |
802G51-9 |
CAUTION LABEL |
|
|
INC. 18 |
| 29 |
265995-6 |
TAPPING SCREW 4X18 |
| 30 |
142282-9 |

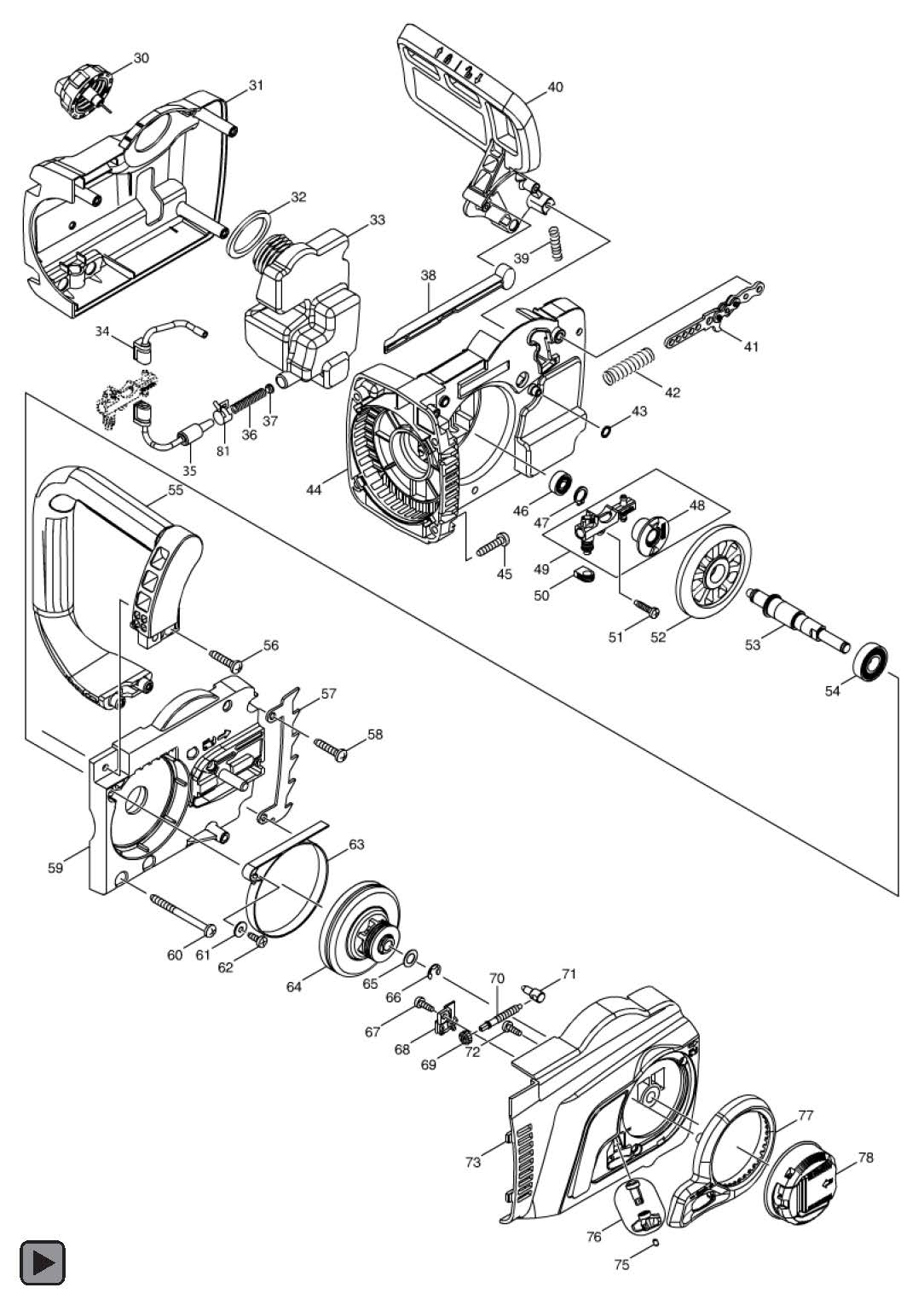

TANK CAP COMPLETE |
| 31 |
454822-4 |
GEAR HOUSING COVER |
| 32 |
421959-2 |
SPONGE SEAL |
| 33 |
454826-6 |
OIL TANK |
| 34 |
424611-1 |
CONNECTOR B |
| 35 |
424610-3 |
CONNECTOR A |
| 36 |
231975-4 |
SPRING |
| 37 |
416274-7 |
CAP |
| 38 |
454825-8 |
ROD |
| 39 |
233174-4 |
COMPRESSION SPRING 6 |
| 40 |
142341-9 |
FRONT HAND GUARD COMPLETE |
| 40 |
802K54-7 |
INDICATION LABEL |
| 41 |
158044-5 |
LINK PLATE COMPLETE |
| 42 |
234005-0 |
COMPRESSION SPRING 9 |
| 43 |
213017-6 |
O RING 6 |
| 44 |
454821-6 |
GEAR HOUSING |
| 45 |
266041-8 |
TAPPING SCREW 5X25 |
| 46 |
210028-2 |
BALL BEARING 606ZZ |
| 47 |
961006-2 |
RETAINING RING S-10 |
| 48 |
221427-3 |
WORM GEAR |
| 49 |
196419-0 |
OIL PUMP SET |
|
|
INC. 48 |
| 49 |
142156-4 |
OIL PUMP COMPLETE |
| 50 |
424612-9 |
GROMMET |
| 51 |
265995-6 |
TAPPING SCREW 4X18 |
| 52 |
227627-3 |
SPIRAL BEVEL GEAR 37 |
| 53 |
326373-6 |
SPINDLE |
| 54 |
210107-6 |
BALL BEARING 6001ZZ |
| 55 |
454823-2 |
FRONT HANDLE |
| 56 |
266041-8 |
TAPPING SCREW 5X25 |
| 57 |
345651-5 |
SPIKE BUMPER |
| 58 |
266041-8 |
TAPPING SCREW 5X25 |
| 59 |
319091-3 |
BEARING HOUSING |
| 60 |
266044-2 |
TAPPING SCREW 5X60 |
| 61 |
267195-4 |
FLAT WASHER 4 |
| 62 |
266026-4 |
TAPPING SCREW BIND CT 4X12 |
| 63 |
168426-3 |
BRAKE BAND |
| 64 |
125331-7 |
BRAKE DRUM ASSEMBLY |
| 64 |
123886-6 |
BRAKE DRUM ASSEMBLY |
| 65 |
253215-0 |
FLAT WASHER 8 |
| 66 |
259033-4 |
RETAINING RING E TYPE 6 |
| 67 |
266427-6 |
TAPPING SCREW 4X12 |
| 68 |
454818-5 |
COVER |
| 69 |
227496-2 |
STRAIGHT BEVEL GEAR 14 |
| 70 |
326372-8 |
ADJUST SCREW |
| 71 |
326310-0 |
ADJUST PIN |
| 72 |
266427-6 |
TAPPING SCREW 4X12 |
| 73 |
142342-7 |
SPROCKET COVER COMPLETE |
| 73 |
183B54-5 |
SPROCKET COVER SET |
| 73 |
142342-7 |
SPROCKET COVER COMPLETE |
|
|
INC. 67-73,75-78 |
| 75 |
263002-9 |
RUBBER PIN 4 |
| 76 |
142665-3 |
DRIVE GEAR COMPLETE |
| 77 |
454819-3 |
NUT COVER |
| 78 |
142235-8 |
NUT COMPLETE |
| 81 |
324685-1 |
HOSE CLAMP |
|
158024-1 |
HOOK COMPLETE |
|
165202-6 |
GUIDE BAR 16" |
|
419242-9 |
CHAIN COVER |
|
196213-0 |
SAW CHAIN SET |
|
805011-8 |
SOUND 103DB LABEL |
