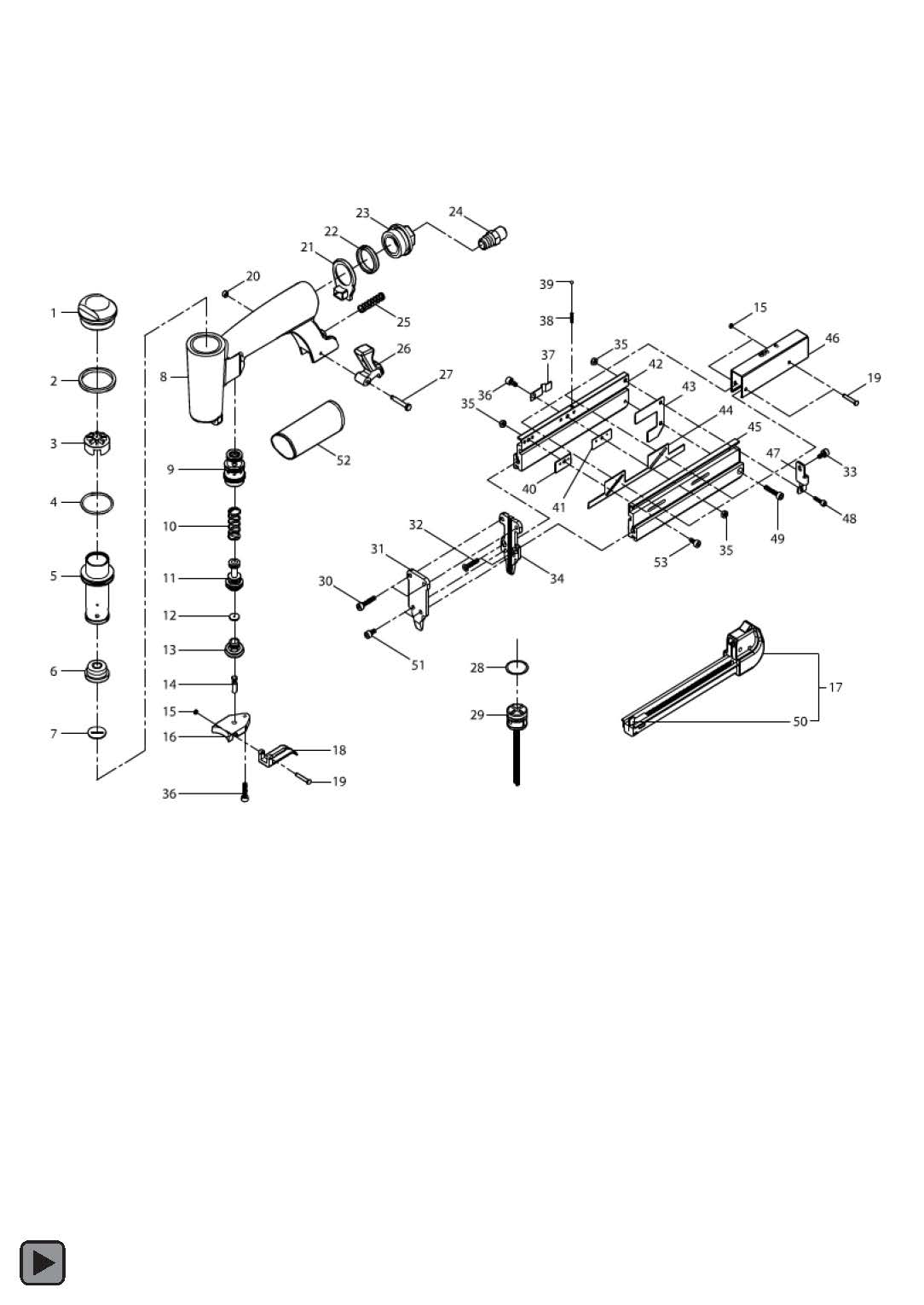

Rasklopna sema za Makita - AF201Z
| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
A0301-0521 |
CYLINDER CAP |
| 2 |
A0311-0211 |
SEAL AIR |
| 3 |
A0305-0051 |
COLLAR |
| 4 |
A0200-1021 |
O RING 31.42X2.62 |
| 5 |
A0303-0281 |
CYLINDER |
| 6 |
A0309-0251 |
BUMPER |
| 7 |
A0310-0301 |
NOZZLE WASHER |
| 8 |
A0401-0621 |
BODY |
| 9 |
K0500-0411 |
TRIGGER VALVE SITE SET |
| 10 |
A0100-0831 |
SPRING |
| 11 |
K0500-0421 |
TRIGGER VALVE PISTON SET |
| 12 |
A0505-0051 |
AIR SEAL |
| 13 |
K0500-0431 |
TRIGGER VALVE HEAD SET |
| 14 |
K0500-0441 |
TRIGGER VALVE STEM SET |
| 15 |
A0005-0311 |
PIN RETAINER 5.5X2 |
| 16 |
A0503-0261 |
TRIGGER VALVE GUIDE |
| 17 |
K0700-2851 |
MAGAZINE SET |
| 18 |
A0500-0251 |
TRIGGER |
| 19 |
A0006-0351 |
PIN '2.9X22.4 |
| 20 |
A0005-0291 |
PIN RETAINER 6X2.9 |
| 21 |
A0304-0291 |
EXHAUST COVER |
| 22 |
A0201-0161 |
AIR SEAL |
| 23 |
A0306-0252 |
BODY END COVER |
| 24 |
K0300-2641 |
AIR PLUG |
| 25 |
A0100-0841 |
COMPRESSION SPRING |
| 26 |
A0709-0301 |
CLICK LEVER |
| 27 |
A0006-0411 |
PIN |
| 28 |
A0200-1341 |
O-RING 17X2.6 |
| 29 |
K0600-1741 |
PISTON SET |
| 30 |
B0000-0021 |
SCREW SET |
| 31 |
B0800-0181 |
DRIVER GUDE COVER SET |
| 32 |
A0001-0001 |
SCREW M4X18 |
| 33 |
B0000-0111 |
SCREW 4X12 |
| 34 |
A0801-1891 |
DRIVER GUIDE |
| 35 |
A0004-0051 |
HEX. NUT M4 |
| 36 |
A0000-0011 |
SCREW 4X8 |
| 37 |
A0105-0031 |
STOPPER BLADE |
| 38 |
A0100-0551 |
COMPRESSION SPRING |
| 39 |
A0009-0021 |
STEEL BALL |
| 40 |
A0716-0281 |
GAP (A) |
| 41 |
A0716-0291 |
GAP (B) |
| 42 |
A0700-1051 |
UPPER MAG. (A) |
| 43 |
A0716-0271 |
GAP (C) |
| 44 |
A0714-0111 |
ADJUSTABLE PLATE |
| 45 |
A0700-1061 |
UPPER MAG. (B) |
| 46 |
A0714-0121 |
ADJUSTABLE COVER |
| 47 |
A0706-0851 |
MAGAZINE SUPPORT |
| 48 |
A0000-0211 |
SCREW M4X10 |
| 49 |
A0000-0041 |
SCREW M4X20 |
| 50 |
A0707-0713 |
PUSHER |
| 51 |
B0000-0011 |
SCREW SET |
| 52 |
A0204-0081 |
HANDLE GRIP |
| 53 |
A0000-0591 |
BHSC SCREW M4*8 |
