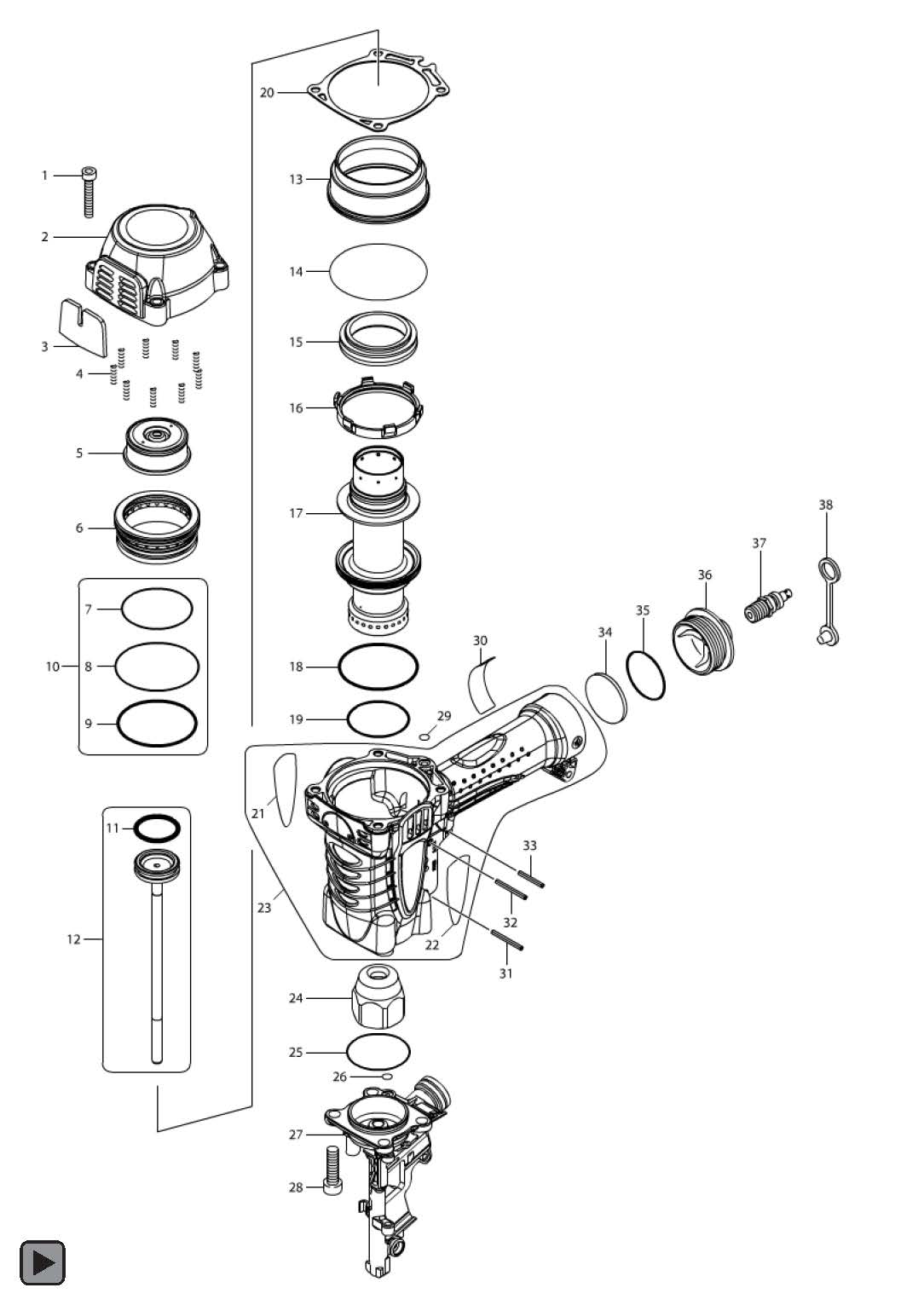

| Broj dela |
Šifra dela |
Naziv dela |
| 1 |
266586-6 |
H.S.H.BOLT M6X35 |
| 2 |
318697-4 |
TOP CAP |
| 3 |
413151-4 |
FILTER |
| 4 |
234114-5 |
COMPRESSION SPRING 4 |
| 5 |
424388-8 |
REAR CUSHION |
| 6 |
412098-9 |
HEAD VALVE |
| 7 |
213612-2 |
O RING 50 |
| 8 |
213668-5 |
O RING 60 |
| 9 |
213658-8 |
O RING 56 |
| 10 |
195480-4 |
AIR LEAK REPAIR SET |
|
|
INC. 7-9,126 |
| 11 |
213588-3 |
O-RING 28 |
| 12 |
135468-2 |
DRIVER ASSEMBLY |
|
|
INC. 11 |
| 13 |
331932-3 |
HEAD VALVE GUIDE |
| 14 |
213754-2 |
O RING 71 |
| 15 |
424389-6 |
VALVE SEAT |
| 16 |
331931-5 |
CYLINDER STAY |
| 17 |
331930-7 |
CYLINDER |
| 17 |
326761-7 |
CYLINDER |
| 18 |
213658-8 |
O RING 56 |
| 19 |
213556-6 |
O RING 42 |
| 20 |
162319-6 |
TOP CAP GASKET |
| 21 |
892601-6 |
MAKITA LOGO LABEL R |
| 22 |
892600-8 |
MAKITA LOGO LABEL L |
| 23 |
187588-8 |
HOUSING SET |
|
|
INC. 21,22 |
| 24 |
424387-0 |
FRONT CUSHION |
| 25 |
213569-7 |
O RING 45 |
| 26 |
213045-1 |
O-RING 6 |
| 27 |
140794-6 |
DRIVER GUIDE COMPLETE |
| 28 |
265565-1 |
HEX SOCKET HEAD BOLT M8X30 |
| 29 |
213045-1 |
O-RING 6 |
| 30 |
869192-2 |
AN930H NAME PLATE |
| 31 |
258029-2 |
SPRING PIN 3-30 |
| 32 |
258029-2 |
SPRING PIN 3-30 |
| 33 |
951072-7 |
SPRING PIN 3-24 |
| 34 |
413105-1 |
INLET FILTER |
| 35 |
213506-1 |
O RING 36 |
| 36 |
318108-9 |
INLET CAP |
| 37 |
243105-5 |
ONE-TOUCH JOINT H22PM |
| 38 |
286280-4 |
CAP 9 |
| 39 |
922257-2 |
HEX. SOCKET HEAD BOLT M5X35 |
| 40 |
941102-2 |
FLAT WASHER 5 |

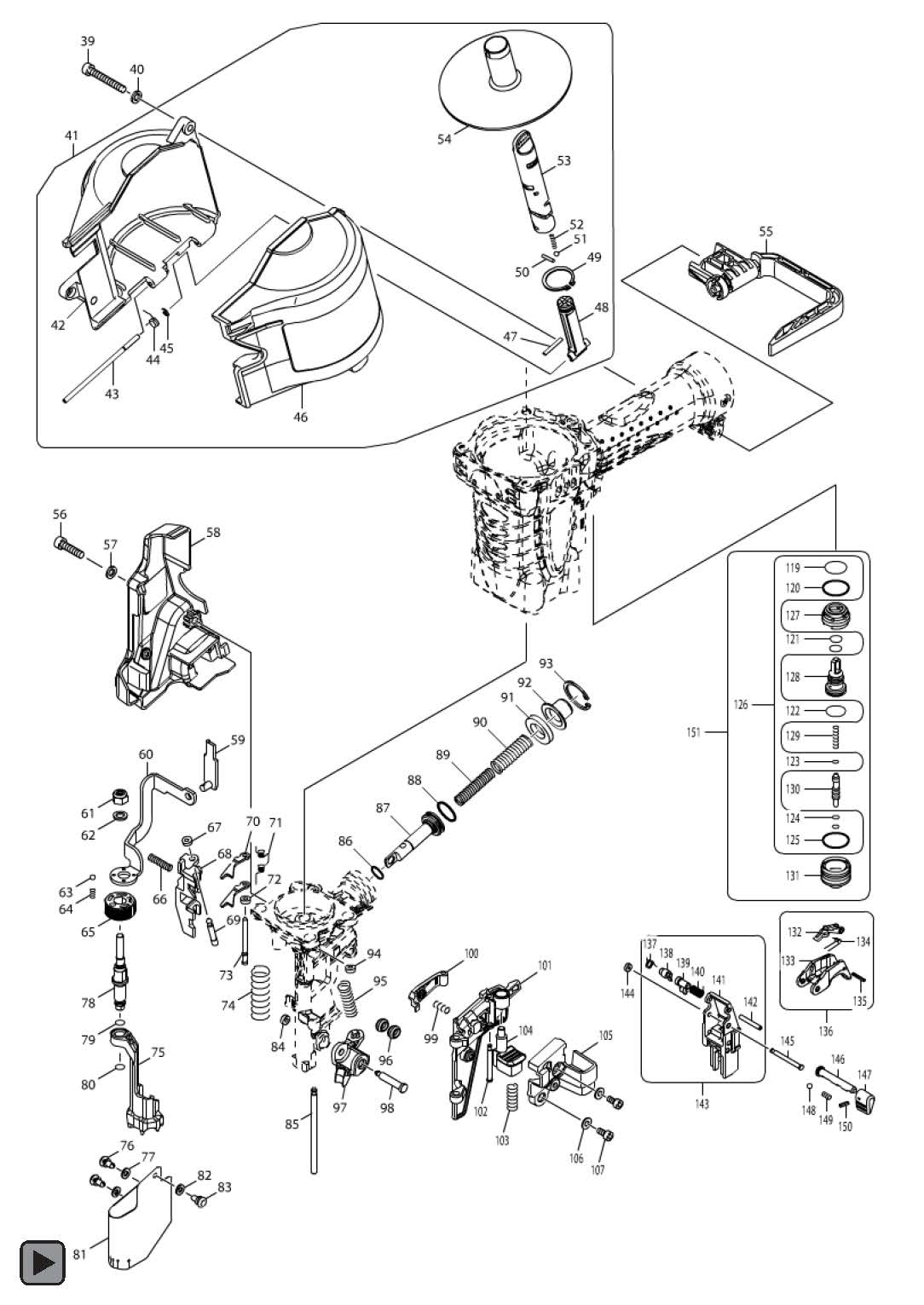

| 41 |
135546-8 |
MAGAGINE ASS'Y |
|
|
INC. 42-54 |
| 41 |
135590-5 |
MAGAGINE ASS'Y |
|
|
INC. 42-54 |
| 42 |
453086-7 |
MAGAZINE |
| 43 |
256773-5 |
PIN 4 |
| 44 |
233505-7 |
TORSION SPRING 7 |
| 45 |
259042-3 |
STOP RING E-3 |
| 46 |
140909-5 |
MAGAZINE CAP COMPLETE |
| 46 |
892598-9 |
AN930H MAGAZINE LABEL |
| 47 |
268168-0 |
PIN 3 |
| 48 |
419858-0 |
ADJUST SHAFT |
| 48 |
454691-3 |
ADJUST SHAFT |
| 49 |
961105-0 |
RETAINING RING S-25 |
| 50 |
268272-5 |
PIN 2.5 |
| 51 |
216008-6 |
STEEL BALL 4 |
| 52 |
233492-0 |
COMPRESSION SPRING 2 |
| 53 |
419859-8 |
ADJUST SLEEVE |
| 54 |
419860-3 |
CHANGE PLATE |
| 55 |
135469-0 |
HOOK ASSEMBLY |
| 56 |
266369-4 |
HEX SOCKET HEAD BOLT M5X20 |
| 57 |
941102-2 |
FLAT WASHER 5 |
| 58 |
452554-7 |
CONTACT ARM COVER |
| 59 |
310504-7 |
CONTACT PLATE B |
| 60 |
346386-1 |
CONTACT ARM |
| 61 |
252014-7 |
HEX. LOCK NUT M6-10 |
| 62 |
941152-7 |
FLAT WASHER 6 |
| 63 |
216001-0 |
STEEL BALL 3.5 |
| 64 |
231236-2 |
COMPRESSION SPRING 3 |
| 65 |
451949-1 |
ADJUSTER DIAL |
| 66 |
234225-6 |
COMPRESSION SPRING 5 |
| 67 |
262054-7 |
URETHANE RING 3 |
| 68 |
310466-9 |
FEEDING CLAW |
| 69 |
256432-1 |
PIN 4-4.5 |
| 70 |
346387-9 |
CHECK CLAW |
| 71 |
233581-1 |
TORSION SPRING 4 |
| 72 |
262054-7 |
URETHANE RING 3 |
| 73 |
256517-3 |
PIN 3 |
| 74 |
234186-0 |
COMPRESSION SPRING 12 |
| 75 |
310467-7 |
CONTACT TOP |
| 76 |
255174-4 |
PUSH RIVET |
| 77 |
941051-3 |
FLAT WASHER 4 |
| 78 |
326024-1 |
ADJUSTER SHAFT |
| 79 |
213005-3 |
O RING 5 |
| 80 |
213005-3 |
O RING 5 |
| 81 |
413152-2 |
COVER |
| 82 |
941051-3 |
FLAT WASHER 4 |
| 83 |
255174-4 |
PUSH RIVET |
| 84 |
262054-7 |
URETHANE RING 3 |
| 85 |
268178-7 |
PIN 4 |
| 86 |
213054-0 |
O RING 9 |
| 87 |
326023-3 |
PISTON |
| 88 |
213154-6 |
O RING 14 |
| 89 |
234045-8 |
COMPRESSION SPRING 9 |
| 90 |
234046-6 |
COMPRESSION SPRING 10 |
| 91 |
262123-4 |
RUBBER RING 14 |
| 92 |
345781-2 |
CUP WASHER |
| 93 |
962103-7 |
RETAINING RING R-24 |
| 94 |
262054-7 |
URETHANE RING 3 |
| 95 |
234208-6 |
COMPRESSION SPRING 6 |
| 96 |
262162-4 |
URETHANE RING 5 |
| 97 |
310468-5 |
NAIL GUIDE |
| 98 |
268261-0 |
FLAT FILLISTER PIN 5 |
| 98 |
256322-8 |
FLAT FILLISTER PIN 5 |
| 99 |
234009-2 |
COMPRESSION SPRING 4 |
| 100 |
310444-9 |
NAIL HOLDER |
| 101 |
310465-1 |
DOOR |
| 102 |
268274-1 |
PIN 3 |
| 103 |
231401-3 |
COMPRESSION SPRING 7 |
| 104 |
162320-1 |
LOCK LEVER |
| 105 |
452553-9 |
DOOR COVER |
| 106 |
941051-3 |
FLAT WASHER 4 |
| 107 |
265911-8 |
HEX. SOCKET HEAD BOLT M4X8 |
| 119 |
213233-0 |
O-RING 15 |
| 120 |
213275-4 |
O RING 18 |
| 121 |
213968-3 |
O-RING 7 |
| 122 |
213185-5 |
O-RING 12.5 |
| 123 |
213044-3 |
O RING 3 |
| 124 |
213640-7 |
O-RING 3 |
| 124 |
213640-7 |
O-RING 3 |
| 125 |
213275-4 |
O RING 18 |
| 126 |
195480-4 |
AIR LEAK REPAIR SET |
|
|
INC. 10,119-125 |
| 127 |
419841-7 |
TRIGGER VALVE GUIDE |
| 127 |
326764-1 |
TRIGGER VALVE GUIDE |
| 128 |
451958-0 |
PILOT VALVE |
| 128 |
326763-3 |
PILOT VALVE |
| 129 |
234188-6 |
COMPRESSION SPRING 3 |
| 130 |
325929-2 |
TRIGGER VALVE STEM |
| 130 |
326476-6 |
TRIGGER VALVE STEM |
| 131 |
331741-0 |
TRIGGER VALVE CASE |
| 131 |
326765-9 |
TRIGGER VALVE CASE |
| 132 |
310502-1 |
IDLER B |
| 133 |
310434-2 |
TRIGGER |
| 133 |
310761-7 |
TRIGGER B |
| 134 |
233570-6 |
TORSION SPRING 3 |
| 135 |
951007-8 |
SPRING PIN 2-12 |
| 136 |
135543-4 |
TRIGGER ASSY |
|
|
INC. 132-135 |
| 136 |
123888-2 |
TRIGGER ASSY B |
|
|
INC. 132-135 |
| 141 |
451963-7 |
TRIGGER BASE |
| 142 |
256221-4 |
PIN 3 |
| 144 |
261118-4 |
URETHANE WASHER |
| 145 |
268262-8 |
PIN 3 |
| 146 |
325928-4 |
LOCK PIN 6A |
| 147 |
451953-0 |
LEVER 6 |
| 148 |
216001-0 |
STEEL BALL 3.5 |
| 149 |
231236-2 |
COMPRESSION SPRING 3 |
| 150 |
951001-0 |
SPRING PIN 2-8 |
| 151 |
135594-7 |
TRIGGER VALVE ASS'Y |
|
|
INC. 119-125,127-131 |
| 152 |
213087-5 |
O-RING 16.5 |
| 153 |
213771-2 |
O-RING 6 |
|
424390-1 |
NOSE ADAPTER |
|
194381-3 |
OIL SUPPLY SET |
|
195246-2 |
SAFETY GOGGLE |
|
783202-0 |
HEX. WRENCH 4 |
|
824947-2 |
PLASTIC CASE |
|
162315-4 |
LATCH |
|
821594-0 |
PLASTIC CARRYING CASE |
|
162315-4 |
LATCH |
|
821624-7 |
PLASTIC CARRYING CASE |
|
162315-4 |
LATCH |
|
892597-1 |
AN930H PLASTIC CASE LABEL |
|
123204-8 |
TRIGGER ASSEMBLY |
|
233570-6 |
TORSION SPRING 3 |
|
310434-2 |
TRIGGER |
|
310503-9 |
IDLER C |
|
951007-8 |
SPRING PIN 2-12 |
|
123887-4 |
TRIGGER ASSY S |
|
233570-6 |
TORSION SPRING 3 |
|
310761-7 |
TRIGGER B |
|
310503-9 |
IDLER C |
|
951007-8 |
SPRING PIN 2-12 |
